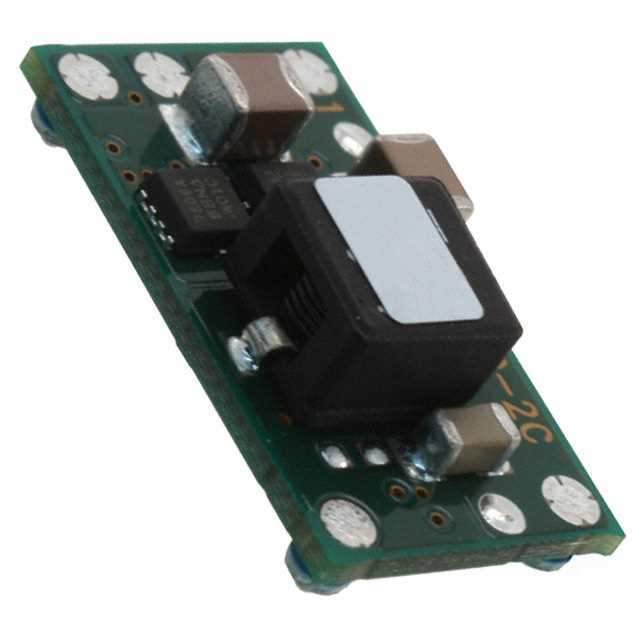

The PTH12050LAS is a high-performance, non-isolated power module designed by Texas Instruments to deliver exceptional efficiency and flexibility in a compact form factor. This power module is part of the PTH12050 series, known for its wide-input voltage range and adjustable output voltage, making it an ideal choice for a variety of demanding applications.

Key Features

• Wide Input Voltage Range: The PTH12050LAS operates with an input voltage range of 10.8V to 13.2V, accommodating various power sources and ensuring stable operation across different supply levels.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 1.8V, providing the flexibility to power a wide range of devices and circuits.
• High Efficiency: With an efficiency rate that can reach up to 95%, this power module minimizes power loss and heat generation, making it suitable for energy-sensitive systems.
• Output Current: The PTH12050LAS can deliver up to 50A of output current, making it capable of powering high-current applications.
• Thermal Performance: The module's excellent thermal performance ensures reliable operation even at full load and in high-temperature environments.
• Compact Size: With its small footprint, the PTH12050LAS saves valuable board space and simplifies the design of power systems.

Applications

The versatility of the PTH12050LAS makes it suitable for a broad range of applications, including but not limited to:

• Telecommunications equipment
• Computing and data storage systems
• Industrial controls
• Networking hardware

Reliability and Support

Texas Instruments is known for its commitment to quality and reliability. The PTH12050LAS is built to meet high standards, ensuring long-term performance and stability. Additionally, TI provides extensive technical support and documentation, including datasheets, design resources, and application notes to assist designers in integrating this power module into their projects.
