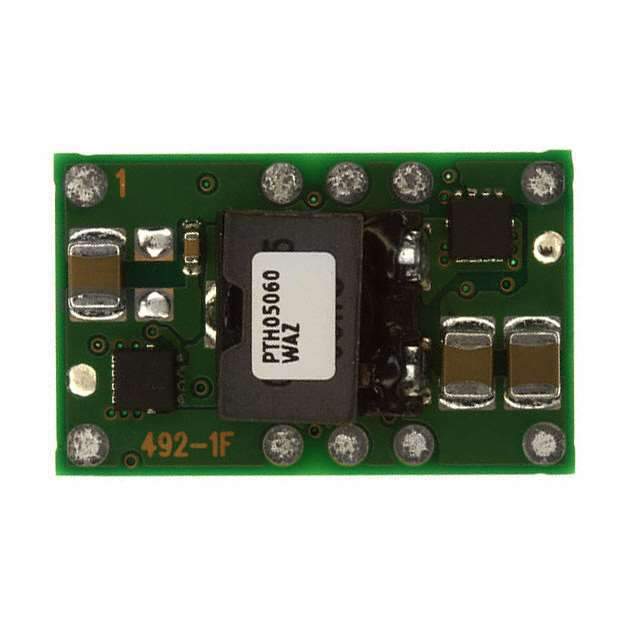

The PTH05060WAZ is a highly reliable and efficient non-isolated power module from Texas Instruments. It is part of the PTH series that provides a wide-input voltage range and adjustable output voltage, making it a versatile solution for various applications. This power module is designed to deliver exceptional performance with a compact footprint, suitable for space-constrained applications.

Key Features

• Wide Input Voltage Range: The PTH05060WAZ operates over a broad input voltage range of 4.5V to 14V, accommodating a variety of power sources and fluctuating voltages in complex systems.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 3.6V, providing flexibility to power different components requiring various voltage levels.
• High Efficiency: This module offers high efficiency, which minimizes power loss and heat generation, thereby increasing the reliability and longevity of the device it powers.
• Output Current: It is capable of delivering up to 6A of output current, making it suitable for high-power applications.
• Small Package: The PTH05060WAZ comes in a small horizontal package, which allows for easy integration into a wide range of electronic devices.
• Thermal Protection: With built-in thermal shutdown protection, the module safeguards itself and the application from damage due to overheating.
• On/Off Inhibit: This feature allows users to control the power module operation via an external signal, providing additional power management capabilities.

Applications

Due to its versatile nature and robust performance, the PTH05060WAZ is suitable for a wide array of applications, including:

• Telecommunications equipment
• Networking hardware such as routers and switches
• Industrial systems
• Test equipment
• Computing and storage systems

Conclusion

The PTH05060WAZ from Texas Instruments represents a blend of flexibility, efficiency, and compact design. It is a reliable power solution that can adapt to various input conditions while providing a stable and adjustable output, fulfilling the needs of a wide range of electronic applications.
