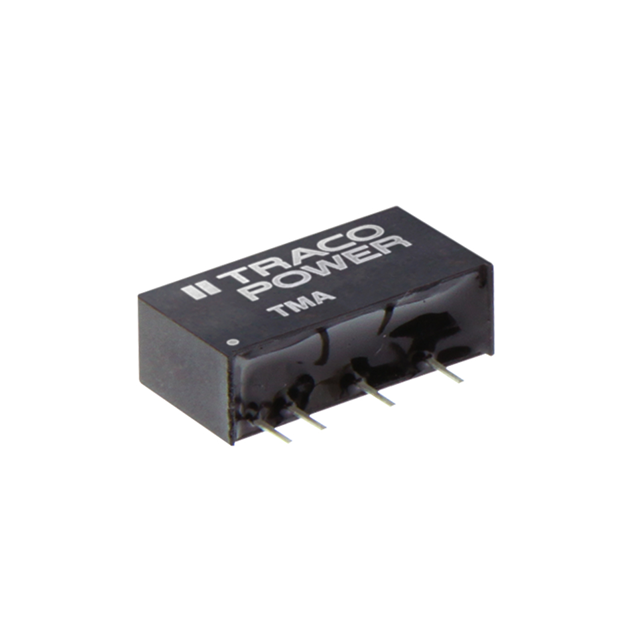

The TMA 1515D is a 1-Watt isolated DC-DC converter module manufactured by TRACO Electronic AG. It is designed to provide a regulated and isolated power supply in a compact package. This module is suitable for various applications where electrical isolation, ground loop elimination, or different voltage levels are required.

Applications

• Industrial control systems.
• Instrumentation and measurement equipment.
• Medical equipment.
• Telecommunications equipment.
• Data acquisition systems.
• Powering isolated gate drivers.
• Use in sensor isolation.

Features

• 1W Output Power: Delivers 1 Watt of output power.
• 1500 VDC Isolation: Provides 1500 VDC of electrical isolation between input and output.
• Wide Input Voltage Range: Accepts a wide range of input voltages.
• Regulated Output Voltage: Offers a stable and regulated output voltage.
• Short-Circuit Protection: Protects the module and connected circuitry from short circuit conditions.
• High Efficiency: Operates with high efficiency for minimal heat dissipation.
• Compact Size: Small footprint for space-constrained applications.

Benefits

• Enhanced Safety: Provides electrical isolation to protect against electrical shock.
• Improved Reliability: Regulated output voltage ensures stable performance.
• Reduced Noise: Isolation minimizes ground loops and electrical noise.
• Versatile Applications: Suitable for various industrial and medical applications.
• Easy Integration: Compact size allows for easy integration into existing systems.

Additional Details

The TMA 1515D accepts a 15VDC input voltage and provides a dual output voltage of +15VDC and -15VDC. It has continuous short-circuit protection and operates over a temperature range of -40°C to +85°C. The efficiency is typically around 80%. The isolation voltage is tested at 1500 VDC for 1 minute. The package type is a SIP (Single In-Line Package). This module meets industry-standard safety requirements. Refer to the product datasheet for the most up-to-date technical specifications and safety certifications.
