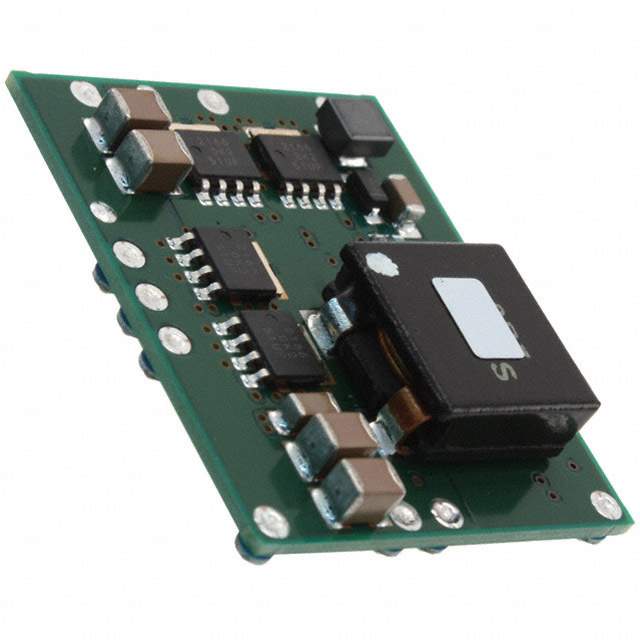

PTH05030WAS Real Image
Same model may have multiple batches, images only for reference.

PTH05030WAS

Part No PTH05030WAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.8-3.6V 108W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 16
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH05030W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 30A
Applications ITE (Commercial)
Features Remote On/Off OCP OTP UVLO
Mounting Style SMD/SMT
Package 13-SMD Module
Size / Dimension 1.37" L x 1.12" W x 0.38" H (34.8mm x 28.5mm x 9.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 108W
Catalog PTH05030W Series
Win Source Part Number 062177-PTH05030WAS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH05030WAS CAD Model

Description

The PTH05030WAS is a high-performance, low profile power module series from Texas Instruments.

  • Maximum Output Current: 15A
  • Adjustable Output Voltage: 0.8V to 3.6V
  • Efficiency: Up to 95%
  • Auto-Track Sequencing: Yes
  • Output Over-Current: Yes
  • Over-Temperature Shutdown: Yes
  • Under-Voltage Lockout: Yes
  • Height: 9mm
