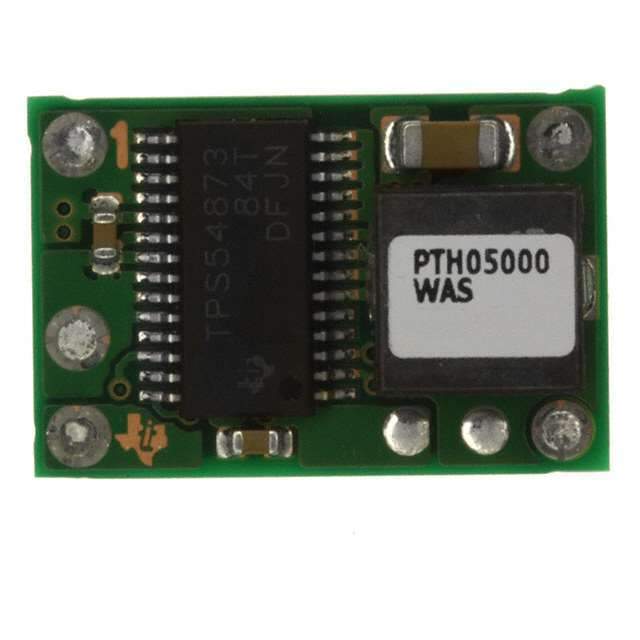

PTH05000WAS Real Image
Same model may have multiple batches, images only for reference.

PTH05000WAS

Part No PTH05000WAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .9-3.6V 6A SMD
Datasheet
PTH05000WAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH05000W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.9 ~ 3.6 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features OTP, UVLO
Mounting Style SMD/SMT
Package 5-SMD Module
Size / Dimension 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Power (Watts) - Max 21.6W
Win Source Part Number 143646-PTH05000WAS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH05000WAS CAD Model

Description

Product PTH05000WAS from Texas Instruments is a highly advanced, non-isolated power module that is part of the company's PTH series.

  • Adjustable Output Voltage: Yes
  • Input Voltage Range: 5V to 14V
  • Output Voltage: 0.8V to 3.6V
  • Maximum Output Current: 6A
  • Efficiency: Up to 96%
  • Under-Voltage Lockout: Yes
  • Output Current Limit: Yes
  • Over-Temperature Shutdown: Yes
