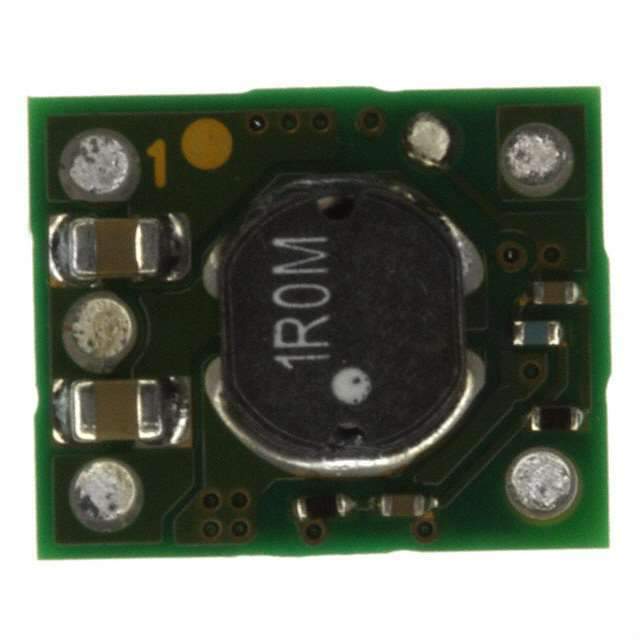

The PTH04070WAS is a high-performance, non-isolated module power converter from Texas Instruments (TI), which stands out for its exceptional efficiency and versatility. This power module is part of TI's extensive range of power management solutions designed to meet the needs of a variety of applications, particularly those requiring a compact power source with adjustable output voltage.

Key Features

• Wide Input Voltage Range: The PTH04070WAS operates with an input voltage range of 2.95V to 5.5V, making it suitable for a variety of low-voltage applications, including those powered by standard 3.3V or 5V rails.
• Adjustable Output Voltage: It provides an adjustable output voltage from 0.8V to 3.6V, allowing designers to use it in systems that require a specific voltage level not commonly available in fixed-output converters.
• High Output Current: The module can deliver up to 3A of continuous output current, which is ideal for powering FPGAs, DSPs, and other high-current digital ICs.
• Efficiency: With an efficiency of up to 90%, this power converter minimizes energy loss, thereby reducing heat generation and improving system reliability.
• Small Footprint: The compact size of the PTH04070WAS, encapsulated in a small 15mm x 9mm x 2.8mm surface-mount package, is perfect for space-constrained applications.
• Thermal Performance: Enhanced thermal performance is achieved through the use of a high-efficiency design and an integrated copper baseplate, which helps to dissipate heat effectively.
• Easy Implementation: The module is designed for easy implementation, with features like Auto-Track™ sequencing simplifying complex voltage tracking schemes in multi-rail systems.

Applications

The PTH04070WAS is suitable for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Enterprise networking and storage systems
• Industrial controls
• Test and measurement equipment
• FPGA and DSP power supplies

With its robust feature set and flexible capabilities, the PTH04070WAS from Texas Instruments is an excellent choice for engineers and designers looking for a reliable and efficient power solution for their next project.
