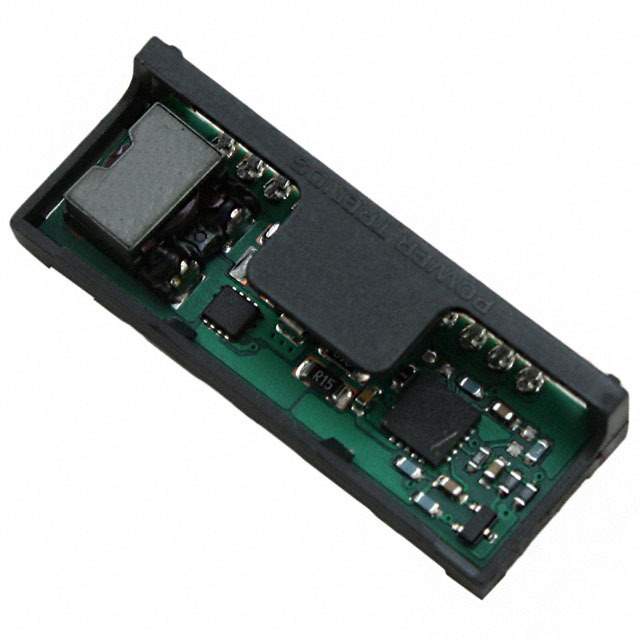

The PT6302A series from Texas Instruments is a line of high-performance, integrated power modules that offer a compact and efficient power solution for a wide range of applications. These modules are part of the Power Trends product family and are designed to provide a reliable power supply in a small footprint, making them ideal for space-constrained applications.

Key Features

• Adjustable Output Voltage: The PT6302A series modules come with an adjustable output voltage feature, which allows for a flexible voltage supply ranging typically from 1.5V to 12.75V, enabling them to cater to various device requirements.
• High Efficiency: With an efficiency of up to 90%, these power modules ensure minimal power loss and heat generation, thereby improving system reliability and performance.
• Integrated Heat Sink: The modules include an integrated heat sink which provides excellent thermal management, ensuring stable operation even under high load conditions.
• Wide Input Voltage Range: The PT6302A series can operate with an input voltage range typically from 9V to 36V, accommodating a variety of power sources and making them versatile for different environments.
• Output Current: These modules are capable of delivering up to 2A of output current, suitable for powering a wide array of electronic devices and systems.
• Over-Current Protection: The built-in over-current protection feature safeguards the module and the connected devices from potential damage due to excessive current.

Applications

The PT6302A series is well-suited for a variety of applications, including but not limited to:

• Telecommunications equipment
• Industrial control systems
• Embedded systems
• Data acquisition systems
• Mixed analog/digital subsystems

With its robust design and flexible operation, the PT6302A series from Texas Instruments stands out as a reliable and efficient solution for designers looking to streamline their power supply design with a ready-to-use module, reducing time to market and simplifying the overall design process.
