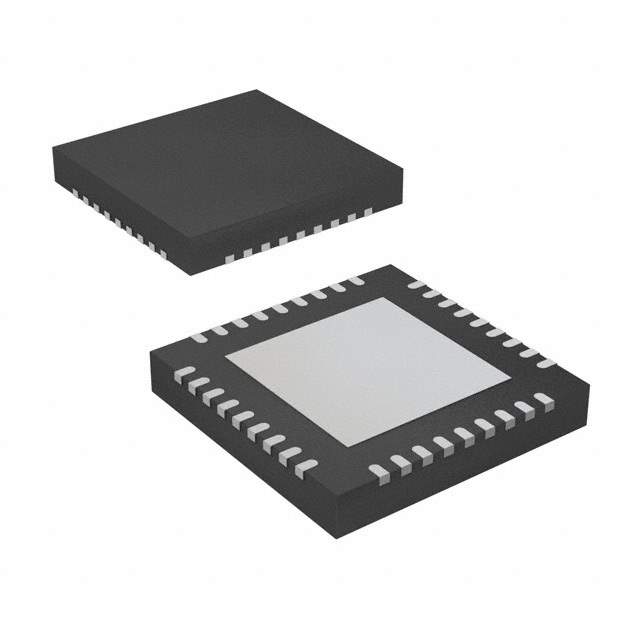

The PGA400-Q1 from Texas Instruments is a highly integrated system-on-chip (SoC) designed for conditioning and processing signals in automotive sensor applications. It is particularly well-suited for resistive bridge sensors, such as those used in pressure, strain, and force sensing. This advanced signal conditioner combines an analog front end (AFE) with digital signal processing, offering a complete solution for sensor interface requirements.

Key Features

• Analog Front End: The PGA400-Q1's AFE includes a programmable gain amplifier (PGA), voltage regulators, a 16-bit sigma-delta analog-to-digital converter (ADC), and a 12-bit digital-to-analog converter (DAC) for sensor excitation.
• Temperature Sensor: An integrated temperature sensor allows for temperature compensation, ensuring accurate measurements across a wide range of environmental conditions.
• Signal Processing: The device features digital signal processing capabilities, including a 16-bit microcontroller, EEPROM memory for calibration and configuration data storage, and a one-wire UART for communication with external controllers.
• Flexibility: With its programmable nature, the PGA400-Q1 can be configured to interface with a variety of sensor types, making it a versatile choice for multiple applications.
• Automotive-Qualified: As a Q1 device, it meets the stringent requirements of the automotive industry, including operation over a wide temperature range and robustness against harsh environmental conditions.

Applications

The PGA400-Q1 is well-suited for automotive applications that require high-precision sensor data acquisition and conditioning. Typical applications include:

• Pressure sensing for brake systems
• Force sensing in weight measurement systems
• Strain sensing for structural monitoring

With its comprehensive set of features, the PGA400-Q1 is an excellent choice for engineers looking for a reliable, accurate, and flexible signal conditioning solution for their automotive sensor systems.
