The Texas Instruments OPA2810IDCNR represents a significant advancement in operational amplifier technology, combining high-speed performance with precision characteristics. This dual-channel operational amplifier is designed to address a wide range of applications, from automated test equipment to high-speed signal conditioning and data acquisition systems.

Key Features

• High Bandwidth: The OPA2810IDCNR boasts a wide bandwidth of 200 MHz, making it suitable for high-frequency signal processing tasks.
• Low Noise: With a low voltage noise density of 4.5 nV/√Hz, this operational amplifier ensures a clean signal amplification, minimizing the impact of intrinsic noise on the overall system performance.
• Fast Slew Rate: The device offers a fast slew rate of 250 V/µs, enabling it to handle rapid changes in input signals without distortion.
• High Output Current: The OPA2810IDCNR can deliver a continuous output current of up to ±65 mA, making it versatile for driving a range of loads.
• Wide Supply Range: It operates over a wide supply range of ±2.25 V to ±18 V, accommodating various power supply configurations.

Applications

• Automated Test Equipment (ATE)
• High-Speed Data Acquisition
• Active Filter Design
• Audio and Video Signal Processing
• Medical Imaging Systems

Package and Quality

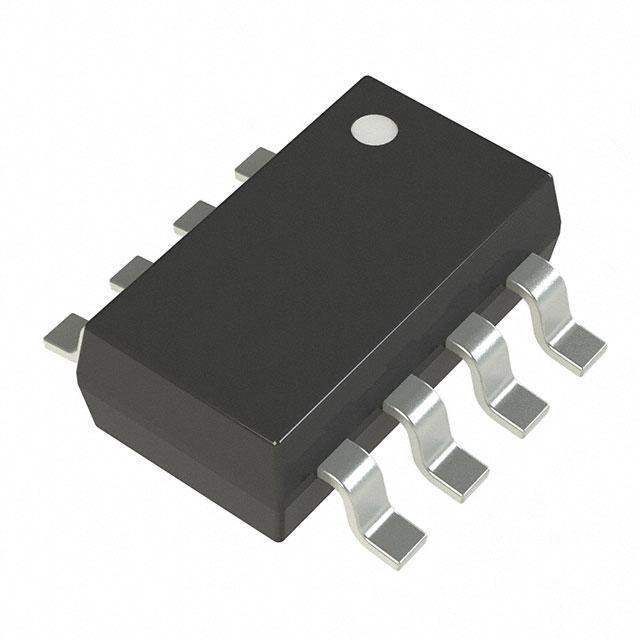

The OPA2810IDCNR comes in a compact VSSOP-8 (Very-Thin Shrink Small Outline No Lead) package, which is ideal for space-constrained applications. The device is characterized for operation from -40°C to +125°C, ensuring reliable performance across a wide range of environmental conditions. Texas Instruments' commitment to quality ensures that this operational amplifier meets the stringent requirements for industrial and commercial applications.

Conclusion

The Texas Instruments OPA2810IDCNR is an exemplary choice for designers looking for an operational amplifier that provides a balance of speed, precision, and versatility. Its robust feature set and reliable performance under varying conditions make it an essential component for any high-performance electronic system.
