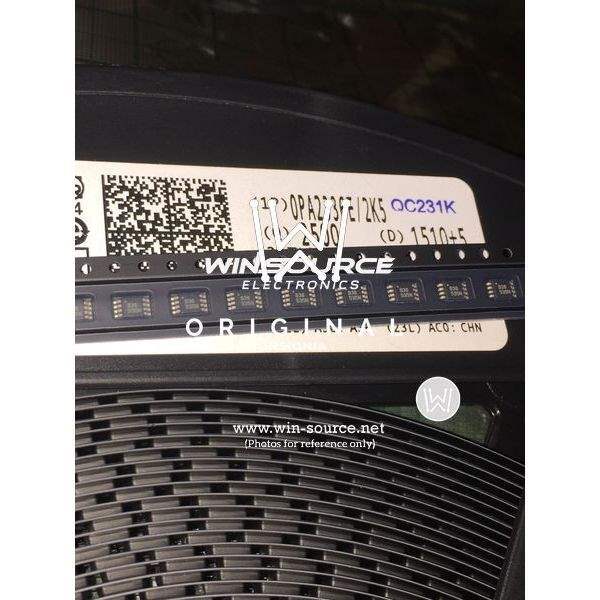

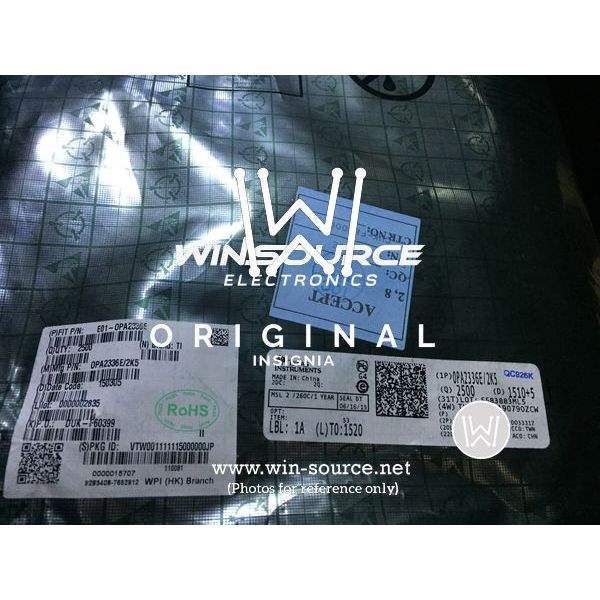

Same model may have multiple batches, images only for reference.

OPA2336E/2K5G4

Name: OPA2336E/2K5G4
Brand: Texas Instruments
SKU: 263326
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	OPA2336E/2K5G4
Manufacturer	Texas Instruments
Catalog	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description	IC OPAMP GP 100KHZ RRO 8VSSOP
Datasheet	OPA2336E/2K5G4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.03 V/μs
Gain Bandwidth Product (GBP)	100kHz
Current - Input Bias	1pA
Voltage - Input Offset	60μV
Operating Supply Current	20μA
Channel Output Current	5mA
Supply Voltage - Operating	2.3 V to 5.5 V
Temperature Range - Operating	-40°C to 85°C
Mounting	SMD (SMT)
Case / Package	8-VSSOP
Win Source Part Number	209448-OPA2336E/2K5G4
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian OPA2336E/2K5G4 CAD Model

Alternative Products

Description

The OPA2336E/2K5G4 is a high-performance, micro-power operational amplifier (Op-Amp) from Texas Instruments, a leading global semiconductor company.

Low Offset Voltage: 150uV
Low Input Bias Current: 1pA
Low Noise: 7nV/√Hz @ 10Hz
Single Supply Voltage: 1.8V to 5.5V
Quiescent Current: 17uA per amplifier
Rail-to-Rail Input/Output Swing: Yes
High Gain Bandwidth: 350kHz
Package: Small, space-saving DFN-10
Operating Temperature Range: -40°C to +125°C
