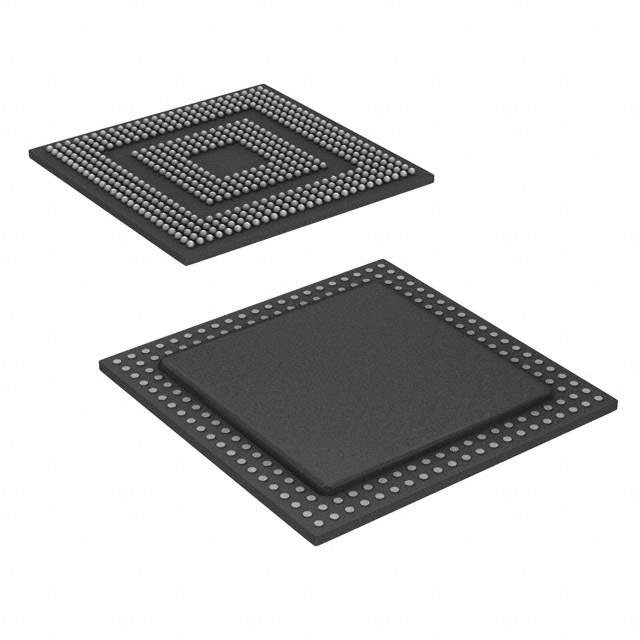

OMAP3515DCBC Real Image
Same model may have multiple batches, images only for reference.

OMAP3515DCBC

Part No OMAP3515DCBC
Manufacturer Texas Instruments
Catalog Embedded - Microprocessors
Description IC MPU OMAP-35XX 600MHZ 515FCBGA
Datasheet
OMAP3515DCBC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Core Processor ARM Cortex-A8
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 600MHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR
Graphics Acceleration Yes
Display & Interface Controllers LCD
USB USB 1.x (3), USB 2.0 (1)
Voltage - I/O 1.8V, 3.0V
Temperature Range - Operating 0°C to 90°C (TJ)
Security Package / Case 515-VFBGA, FCBGA
Case / Package 515-POP-FCBGA (14x14)
Additional Interfaces HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
Win Source Part Number 025893-OMAP3515DCBC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OMAP3515DCBC CAD Model

Description

The OMAP3515DCBC is a high-performance, advanced multimedia application processor manufactured by Texas Instruments.

  • Architecture Family: OMAP 3
  • Core: 600MHz ARM Cortex-A8 core.
  • Graphics Accelerator: Integrated PowerVR SGX.
  • Graphics Support: OpenGL ES 2.0 and OpenVG 1.1.
  • Video Accelerator: High-definition (HD) video accelerator supporting 720p HD video playback and recording.
  • Connectivity: USB 2.0, SPI, I2C, and UART.
  • Power Management: Dynamic voltage and frequency scaling (DVFS).
