Product Overview: MSP430F5658IZQWR from Texas Instruments

The MSP430F5658IZQWR is a powerful microcontroller unit (MCU) from Texas Instruments, designed for high-performance, low-power applications. As part of the MSP430 family, this MCU is particularly well-suited for industrial, consumer, and health applications where efficiency and reliability are crucial. With a 16-bit RISC architecture, it offers a balanced combination of speed and power consumption.

Key Features

• CPU: The MSP430F5658IZQWR boasts a 16-bit RISC CPU, offering up to 25 MHz of processing speed, which provides efficient handling of tasks with minimal power usage.
• Memory: Equipped with 256KB of flash memory and 18KB of RAM, this MCU can handle complex programs and data-intensive operations without compromising performance.
• Power Management: A range of integrated power-saving modes allows the device to operate with an ultra-low power consumption, making it ideal for battery-powered and portable applications.
• I/O Ports: With 87 I/O pins, the MSP430F5658IZQWR offers ample connectivity for peripherals and sensors, enhancing its versatility in various applications.
• Analog Features: The MCU includes multiple 12-bit analog-to-digital converters (ADCs) and a 12-bit digital-to-analog converter (DAC), facilitating precise analog signal processing.
• Communication: It supports a range of communication protocols including UART, SPI, and I2C, enabling easy integration with other digital systems and components.

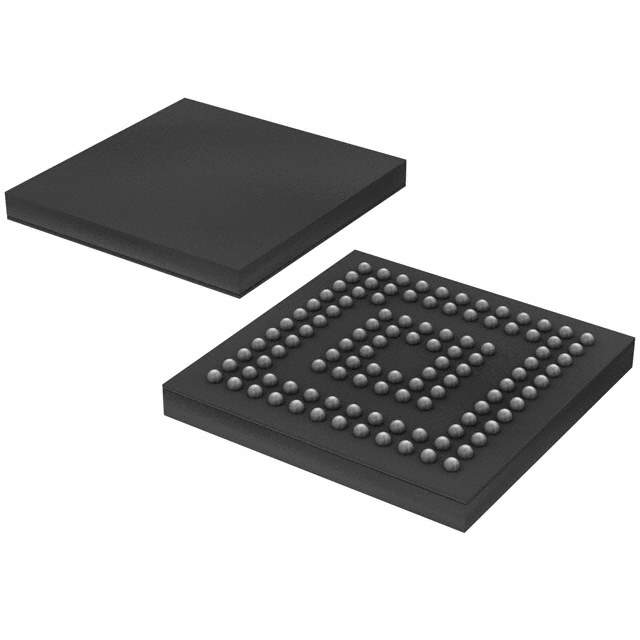

• Package: The device comes in a compact 113-pin BGA (Ball Grid Array) package, which is ideal for space-constrained applications.

Applications

The MSP430F5658IZQWR is designed to meet the needs of a wide array of applications. Its robust design and feature set make it particularly suitable for:

• Smart meters and energy monitoring systems
• Portable medical devices and fitness trackers
• Home automation and security systems
• Industrial control systems
• Agricultural and environmental monitoring devices

In summary, the MSP430F5658IZQWR from Texas Instruments is a highly capable microcontroller that delivers performance, efficiency, and flexibility for designers looking to create advanced, low-power electronic systems.
