Product Overview: Texas Instruments MAX3243ECDBRG4

The MAX3243ECDBRG4 is a high-performance, 3-V to 5.5-V, RS-232 interface chip from Texas Instruments, designed to meet the needs of modern communication systems. This integrated circuit is specifically engineered to operate at low voltages, making it an ideal choice for battery-powered and portable applications where power efficiency is crucial.

With its wide supply voltage range, the MAX3243ECDBRG4 provides a flexible solution for designers looking to interface with RS-232 communication standards while maintaining a low-power consumption profile. The device features a proprietary low-dropout transmitter output stage, enabling true RS-232 performance from a 3.0V to 5.5V supply, with a typical supply current of 1mA, further enhancing its appeal in power-sensitive applications.

The chip supports multiple drivers and receivers, with up to five drivers and three receivers, allowing for versatile connectivity options. This array of transceivers can be used in full-duplex configurations, ensuring robust bidirectional communication. The MAX3243ECDBRG4 also offers a 1µA shutdown mode that significantly reduces power consumption when the device is not in active use, which is particularly useful in preserving battery life in portable devices.

For enhanced data integrity, the MAX3243ECDBRG4 incorporates electrostatic discharge (ESD) protection circuitry, which guards the device against damage from electrostatic discharges up to ±15kV. This feature is critical for maintaining the reliability and longevity of the product in environments where ESD events are likely to occur.

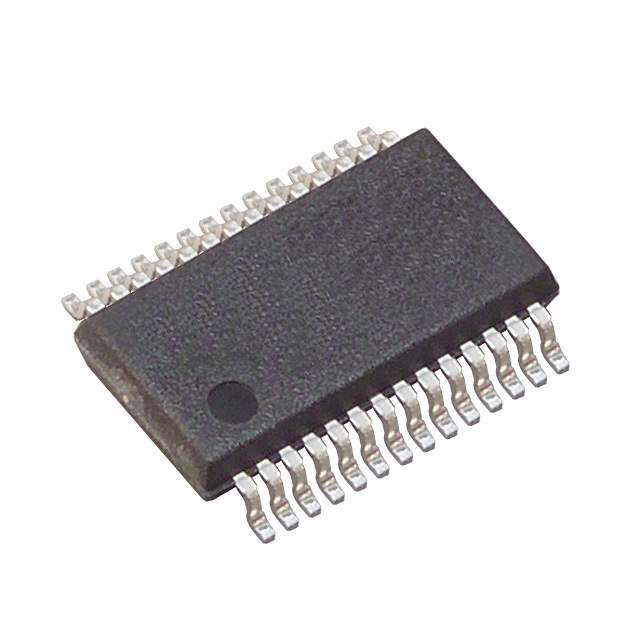

The device comes in a SSOP (Shrink Small Outline Package) form factor, with the DBRG4 suffix indicating the specific package type. This compact package is suitable for space-constrained applications, and its gull-wing leads allow for easy soldering and inspection during the manufacturing process.

In summary, the MAX3243ECDBRG4 from Texas Instruments is a versatile, low-power RS-232 interface chip that is well-suited for a wide range of applications, from portable devices to industrial controls. Its combination of low-voltage operation, multiple transceiver channels, ESD protection, and power-saving features makes it a reliable and efficient choice for designers looking to incorporate RS-232 communication capabilities into their systems.
