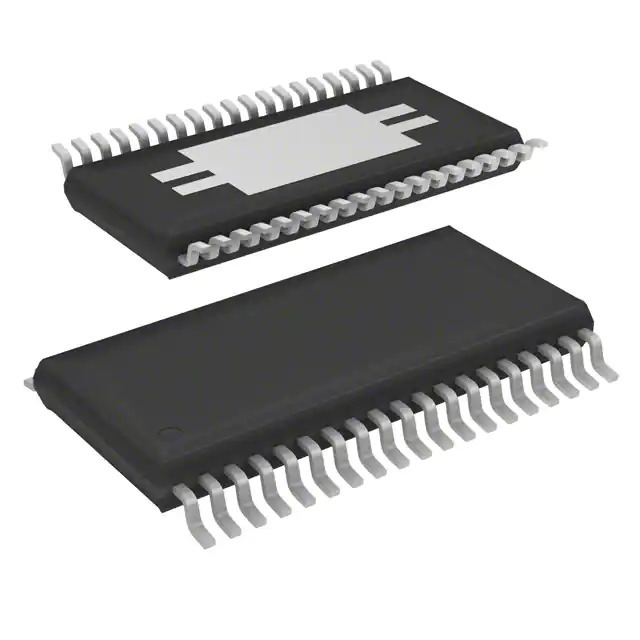

LP8866SQDCPRQ1

Part No LP8866SQDCPRQ1
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRVR CTRLR PWM 38HTSSOP / LED Driver IC 6 Output DC DC Controller SEPIC, Step-Up (Boost) PWM Dimming 150mA 38-HTSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Type DC DC Controller
Topology SEPIC, Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 48V
Voltage - Output 0V ~ 48V
Current - Output / Channel 150mA
Frequency 100kHz ~ 2.2MHz
Dimming PWM
Applications Automotive, Backlight
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 38-PowerTFSOP (0.173", 4.40mm Width)
Supplier Device Package 38-HTSSOP
Base Product Number LP8866
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1352921-LP8866SQDCPRQ1
Ultra Librarian 3D Model Ultra Librarian LP8866SQDCPRQ1 CAD Model

Description

Product Overview: LP8866SQDCPRQ1 - Texas Instruments

The LP8866SQDCPRQ1 is a high-performance automotive LED driver designed by Texas Instruments to meet the advanced requirements of interior and exterior vehicle lighting systems. This efficient power management integrated circuit is engineered to provide consistent and reliable performance, making it an ideal choice for applications such as LED-based headlights, tail lights, and interior ambient lighting.

Key Features

  • Input Voltage Range: The device operates on a broad input voltage range, accommodating the fluctuations commonly found in automotive power systems.
  • LED String Control: It features six high-precision current sinks that can drive up to 60 mA each, allowing for precise control over multiple LED strings.
  • Thermal Management: Equipped with an integrated thermal shutdown feature, the LP8866SQDCPRQ1 ensures protection against overheating, enhancing the longevity and reliability of the system.
  • PWM Dimming: The driver supports PWM dimming, providing flexibility in brightness control which is essential for creating adaptable lighting conditions in vehicles.
  • EMI Reduction: With its built-in spread spectrum and phase shifting, the device minimizes electromagnetic interference (EMI), a critical factor in automotive design to ensure compliance with stringent regulations.
  • Robust Protection Features: The LP8866SQDCPRQ1 includes under-voltage lockout, LED open and short circuit protection, and over-current protection, safeguarding the system from a variety of electrical anomalies.

Applications

Designed specifically for the automotive industry, the LP8866SQDCPRQ1 is suitable for a wide range of applications, including:

  • Automotive front light, such as high beam, low beam, and daytime running lights (DRL)
  • Rear lights, including brake lights and turn signals
  • Interior lighting, like dashboard illumination, door lights, and map lights

Quality and Reliability

Texas Instruments ensures that the LP8866SQDCPRQ1 meets the highest quality and reliability standards required in the automotive industry. The device is AEC-Q100 qualified, which is a key indicator of its suitability for automotive applications where performance and durability are paramount.
