The LP3943ISQX/NOPB is a versatile, programmable LED driver integrated circuit (IC) designed and manufactured by Texas Instruments. This IC is specifically tailored for the efficient and flexible management of LED status information or LED displays that require multiplexed input. It is an ideal choice for a wide range of applications, including mobile phones, personal electronics, and industrial displays.

Key Features

• Integrated LED Driver: The LP3943ISQX/NOPB can drive up to 16 LEDs individually or in groups with its 16 open-drain constant current-sinking outputs.
• Programmable Current: Each LED output can be programmed for a constant current value, allowing for precise control over the brightness and power consumption of the connected LEDs.
• I²C Interface: The device includes an I²C-compatible interface that supports Standard (100 kHz), Fast (400 kHz), and Fast-Plus (1 MHz) modes, enabling easy programming and integration with a microcontroller or processor.
• Flexible Voltage Range: The LP3943ISQX/NOPB operates over a wide supply voltage range from 2.3V to 5.5V, making it suitable for use with a variety of power sources.
• Low Power Consumption: Designed for power-sensitive applications, this LED driver boasts low power consumption, which helps extend battery life in portable devices.
• Thermal Shutdown Protection: To ensure reliability and safety, the IC features an integrated thermal shutdown mechanism that prevents damage from overheating.

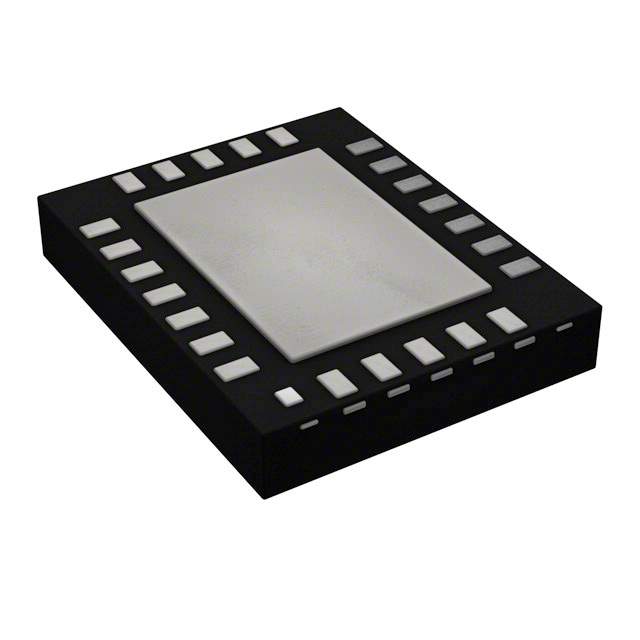

• Packaging: The device is available in a compact, thermally enhanced 24-pin WQFN package, which is ideal for space-constrained applications.

Applications

The LP3943ISQX/NOPB's flexibility and features make it suitable for a variety of applications, including:

• Keypad Backlighting
• RGB or Monochrome LED Displays
• Indicator Lights
• Fun Light Applications
• Battery-Powered and Handheld Devices

With its combination of programmability, efficiency, and ease of use, the LP3943ISQX/NOPB from Texas Instruments stands out as a comprehensive solution for LED driving requirements in both consumer and industrial products.
