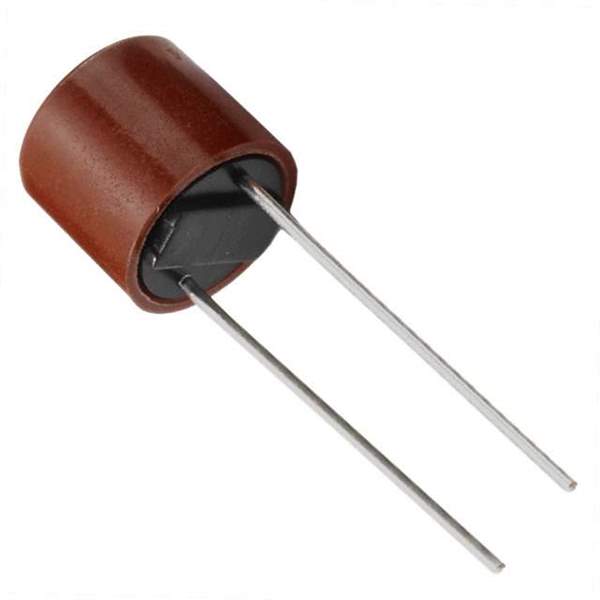

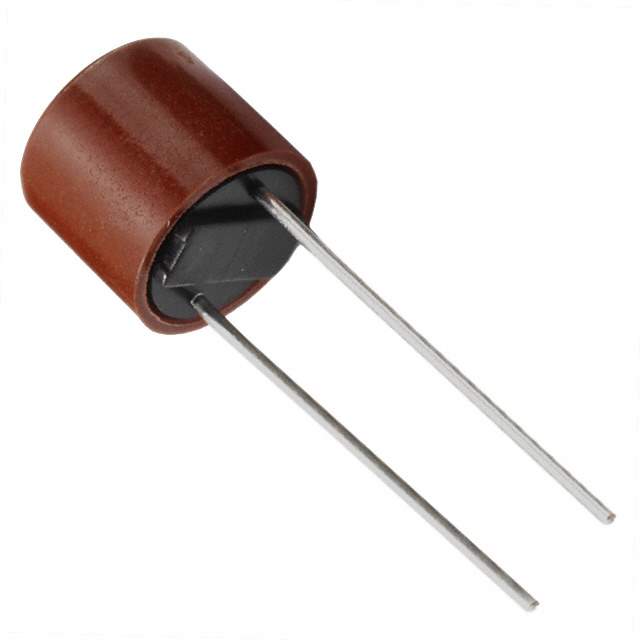

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Approvals SEMKO, VDE
Case / Package Radial
Color Brown
Current Rating 5 A
Diameter 8.5 mm
Flammability Rating UL94 V-0
Fuse Current 5 A
Height 8.001 mm
Housing Material Thermoplastic
Lead Free Lead Free
Length 8 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Through Hole
Power Dissipation 1.25 W
REACH SVHC Unknown
Resistance 10.8 mΩ
RoHS Compliant
Termination Radial
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1159337-38215000000
Categories Fuses
Manufacturer Littelfuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 38215000000 CAD Model

Description

The Littelfuse Inc. 1159337-38215000000 electronic component is a high-quality product that is perfect for various applications.

  • Manufacturer: Littelfuse Inc.
  • Category: Fuses
  • Supply and Demand Status: Limited
  • Mount: Through-hole
  • Voltage Rating: 250 V
  • Fuse Current: 5 A
