Introducing the LMZM33603 Power Module from Texas Instruments

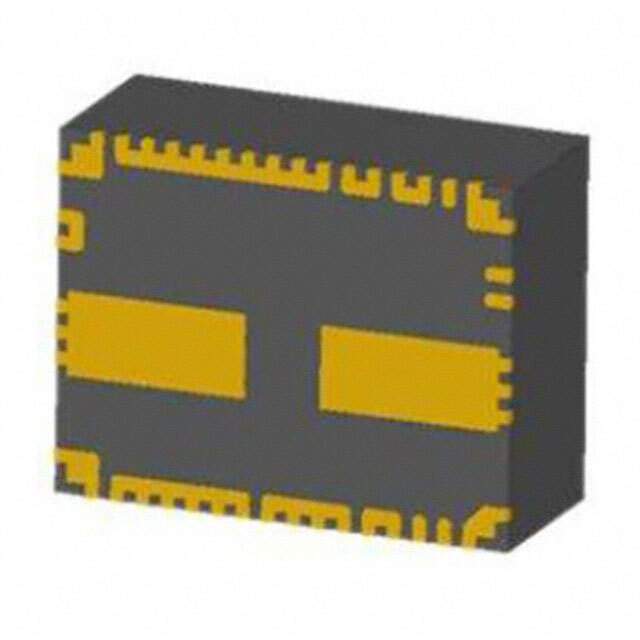

The LMZM33603RLRR is a high-efficiency, easy-to-use power module from Texas Instruments (TI) that simplifies the process of designing power supplies for a wide range of applications. This power solution integrates a DC/DC converter, inductor, and passives into a compact QFN package, making it an ideal choice for space-constrained applications.

With an input voltage range of 4V to 36V, the LMZM33603RLRR is versatile enough to handle a variety of power sources. It delivers an adjustable output voltage from 1V to 7V, allowing designers to tailor the output to meet the needs of their specific application. The module can supply up to 3A of continuous output current, making it suitable for powering FPGAs, microprocessors, and other digital ICs.

The high level of integration within the LMZM33603RLRR minimizes the need for external components, which not only saves board space but also reduces bill of materials (BOM) cost and simplifies the design process. The module features an advanced packaging technology that enhances thermal performance and allows for operation over a wide temperature range, ensuring reliability in various environments.

Efficiency is a key aspect of the LMZM33603RLRR, and with its synchronous step-down converter topology, it achieves excellent efficiency at a wide range of load currents. This helps to reduce power loss and improve system performance. Additionally, the module includes a number of built-in protection features such as over-current, over-temperature, and under-voltage lockout, which enhance the safety and robustness of the end application.

For designers looking to accelerate their product development, TI provides comprehensive support for the LMZM33603RLRR, including design tools, simulation models, and reference designs. This support, coupled with the module's performance and ease of use, makes it an excellent choice for a variety of applications, including industrial, automotive, and communication equipment.

Overall, the LMZM33603RLRR power module from Texas Instruments represents a high-performance, reliable, and easy-to-implement solution for modern power supply design challenges.
