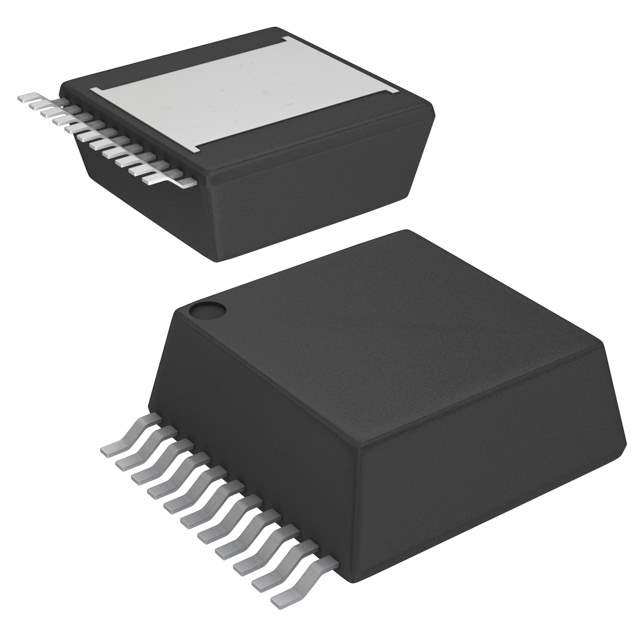

Introducing the LMZ22008TZE Power Module from Texas Instruments

The LMZ22008TZE is a highly efficient, easy-to-use power module that is part of Texas Instruments' innovative SIMPLE SWITCHER® series. This power solution is designed to simplify the process of implementing a power supply in a wide range of applications. With its robust design, the LMZ22008TZE offers a reliable and compact power management solution for designers and engineers.

Key Features

• High Efficiency: The module operates with an outstanding efficiency that minimizes heat generation, making it suitable for thermally sensitive applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 6V, providing flexibility for various design requirements.
• High Output Current: Capable of delivering up to 8A of continuous output current, this module can power a wide range of components and devices.
• Wide Input Voltage Range: With an input voltage range from 6V to 20V, the LMZ22008TZE is versatile and can accommodate various input sources.
• Integrated Inductor: The inclusion of a built-in inductor simplifies the design and reduces the need for external components, saving space on the PCB.
• Thermal Performance: The innovative package design enhances thermal performance and reliability.
• Protection Features: It includes over-temperature and over-current protection, ensuring safe operation under abnormal conditions.

Applications

The LMZ22008TZE is ideal for a broad range of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Networking equipment
• FPGA, DSP, and ASIC power supplies

Thanks to its Power Good output signal, the module provides a reliable startup sequencing for processors and other ICs, ensuring system stability. The package is lead-free and RoHS compliant, aligning with environmental standards and regulations.

Overall, the LMZ22008TZE from Texas Instruments represents a powerful, efficient, and easy-to-use solution for modern power supply requirements. Its combination of features, protections, and flexibility make it an excellent choice for designers looking to optimize their power management systems.
