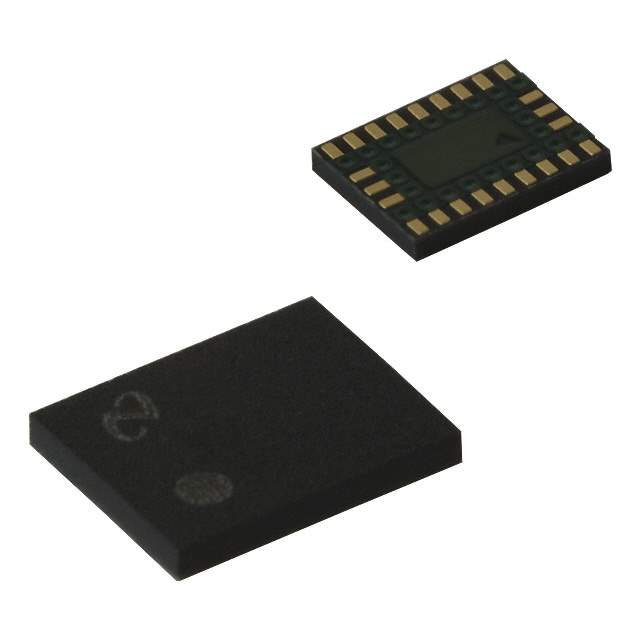

The LMX2330LSLBX/NOPB is a high-performance, low-power frequency synthesizer system that integrates a double-balanced mixer and a fully programmable dual-modulus prescaler. Manufactured by Texas Instruments, this synthesizer is designed to generate a stable and precise frequency signal, making it an ideal component for RF systems in telecommunications, such as mobile phones, WLAN, and other wireless communication devices.

Key Features

• Frequency Range: The device supports a wide frequency range, which is essential for versatile applications across different communication standards.
• Low Phase Noise: The LMX2330LSLBX/NOPB offers low phase noise performance, ensuring high-quality signal generation for sensitive RF applications.
• Power Efficiency: With its low-power consumption, the device is optimized for battery-powered applications, extending the operational life of portable devices.
• Programmability: The dual-modulus prescaler is fully programmable, allowing for fine-tuning and precise control over the output frequency.
• Integration: The integration of a double-balanced mixer enhances the functionality of the device by enabling frequency conversion, which is critical in modern RF designs.

Applications

• Wireless Communication Systems
• Global Positioning Systems (GPS)
• Local Area Network (LAN) Devices
• Personal Communication Services (PCS)

Quality and Reliability

The LMX2330LSLBX/NOPB is designed to meet the rigorous demands of the telecommunications industry. Texas Instruments ensures that each device is tested for quality and performance, offering reliability for designers and manufacturers. The NOPB designation indicates that the product is lead-free (No Lead Plating Balls), making it compliant with environmental regulations such as RoHS.

Product Specifications
