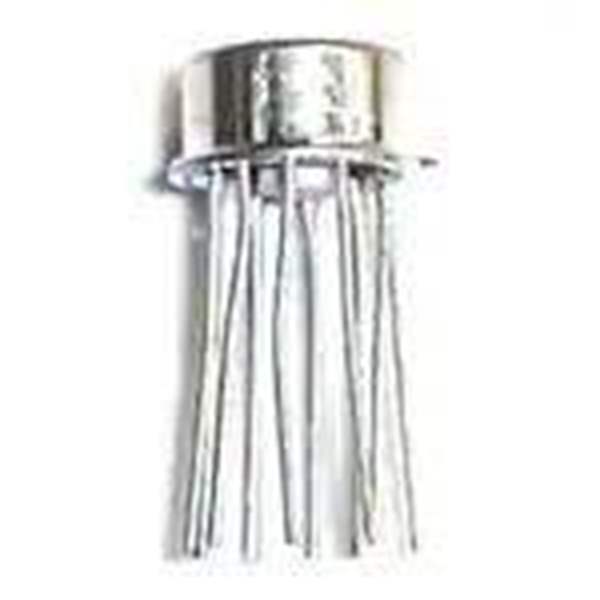

The HS2-3530ARH-8 is a radiation-hardened operational amplifier (op-amp) manufactured by Renesas Electronics America. This op-amp is designed for use in harsh environments where exposure to radiation is a concern, such as space applications, high-altitude avionics, and nuclear facilities. It provides precision amplification and signal conditioning capabilities in demanding conditions.

Applications

• Spacecraft electronics: Used in satellite systems for signal amplification and data processing.
• High-altitude avionics: Employed in aircraft control systems and instrumentation.
• Nuclear facilities: Integrated into monitoring and control equipment in nuclear power plants.
• Medical imaging: Utilized in radiation therapy equipment for precise control and measurement.
• Scientific instrumentation: Used in research equipment exposed to radiation.

Features

• Radiation-hardened design
• Low offset voltage
• Low input bias current
• High open-loop gain
• Wide supply voltage range
• Single or dual supply operation
• 8-pin package

Benefits

• Reliable performance: Maintains functionality in high-radiation environments.
• High precision: Low offset voltage and bias current ensure accurate signal amplification.
• Versatile: Can be used in a wide range of applications due to its flexible supply voltage range.
• Robust design: Withstands harsh operating conditions.
• Stable operation: High open-loop gain ensures stable amplification.

Technical Specifications

The HS2-3530ARH-8 has a typical offset voltage of less than 1mV and an input bias current of less than 10nA. The open-loop gain is typically greater than 100dB. The supply voltage range is typically ±5V to ±15V. The device is packaged in an 8-pin ceramic DIP package. The operating temperature range is typically -55°C to +125°C. It has been tested and characterized for radiation tolerance.
