Product Overview: LMV321AQDCKRQ1 from Texas Instruments

The LMV321AQDCKRQ1 is a high-performance, single-channel operational amplifier (op-amp) designed by Texas Instruments specifically for the demanding requirements of automotive applications. This particular op-amp is part of Texas Instruments' LMV321 series, known for its low-voltage operation and low power consumption, making it an ideal choice for battery-powered systems and portable devices within the automotive industry.

Key Features

• Automotive Qualification: The LMV321AQDCKRQ1 is AEC-Q100 qualified, ensuring that it meets the stringent reliability standards required for automotive applications.
• Low Voltage Operation: It can operate at a supply voltage range of 2.7V to 5.5V, which is compatible with most automotive power systems and allows for flexible design options.
• Low Power Consumption: With a typical quiescent current of just 130 µA, it is an excellent choice for energy-sensitive applications where power efficiency is crucial.
• High Gain Bandwidth: The device offers a gain bandwidth product of 1 MHz, which is suitable for a variety of audio and signal processing tasks within the vehicle.
• Rail-to-Rail Output: The op-amp provides a rail-to-rail output swing, which maximizes the dynamic range within the limited supply voltage.
• Extended Temperature Range: It is designed to operate over an extended temperature range from -40°C to +125°C, accommodating the extreme conditions often encountered in automotive environments.

Applications

The LMV321AQDCKRQ1 is versatile and can be used in a variety of automotive applications, including:

• Sensor signal conditioning
• Audio processing
• Active filtering
• Low-side current sensing
• General-purpose analog circuitry

Package and Availability

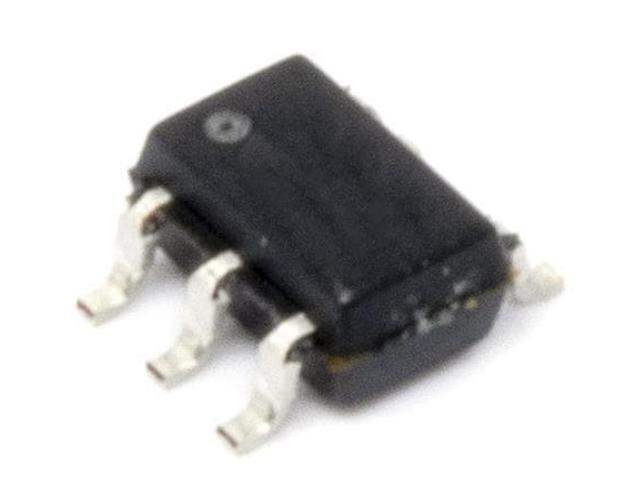

This op-amp is available in a space-saving 5-pin SC-70 (SOT-353) package, which is suitable for high-density circuit boards commonly found in modern automotive electronics. The compact footprint of the LMV321AQDCKRQ1 makes it an attractive option for designers looking to minimize the size of their applications without compromising on performance.

Overall, the LMV321AQDCKRQ1 from Texas Instruments represents a reliable and efficient solution for automotive electronics designers, providing the necessary performance and durability for a wide range of applications.
