LMR14020SEVM Evaluation Module from Texas Instruments

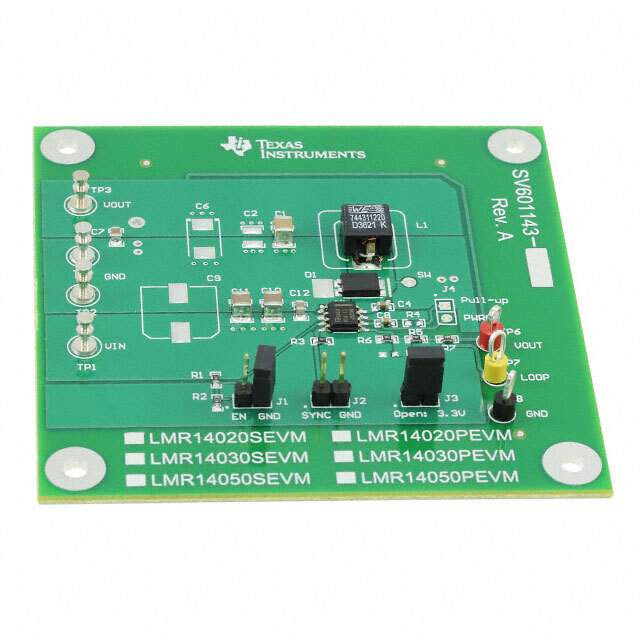

The LMR14020SEVM from Texas Instruments is a fully assembled and tested circuit for evaluating the LMR14020 Simple Switcher® step-down voltage regulator. This evaluation module (EVM) is designed to provide the electronics enthusiast, developer, or engineer with a robust platform for testing and prototyping applications that require a high-performance power supply solution.

The LMR14020 regulator is capable of driving a load up to 2A with excellent power efficiency. It operates over a wide input voltage range from 4V to 40V, which makes it suitable for a variety of applications, including industrial, automotive, and telecommunications infrastructure. The regulator features a fixed switching frequency of 1.5MHz, which allows for the use of small surface-mount inductors and capacitors, resulting in a compact power supply solution with good power density.

The LMR14020SEVM showcases the regulator's features, including its internal compensation, which minimizes the user's design effort and simplifies the implementation process. The EVM also includes thermal shutdown, current limit, and overvoltage protection, ensuring safe operation under a variety of conditions.

On the evaluation module, all critical components are pre-mounted, providing a quick and easy solution to evaluate the performance of the LMR14020 regulator. The EVM comes with several test points and jumper options, allowing users to easily modify the circuit and adjust the output voltage, switching frequency, and other parameters to suit specific application requirements.

For developers looking to design a highly efficient power supply, the LMR14020SEVM presents an excellent starting point. Its ease of use, combined with the comprehensive documentation provided by Texas Instruments, including datasheets, application notes, and design guides, helps accelerate the development cycle and reduce time to market for new products.

Overall, the LMR14020SEVM is an indispensable tool for anyone looking to harness the power and flexibility of the LMR14020 Simple Switcher® voltage regulator in their next project.
