Overview of Texas Instruments LMK04808BISQX/NOPB

The Texas Instruments LMK04808BISQX/NOPB is a highly integrated, low-noise Network Synchronizer Clock Jitter Cleaner that provides an advanced timing solution for communication infrastructure, data converters, and high-performance applications. This device is designed to manage clock trees in complex systems, ensuring low jitter and high signal integrity for critical paths.

Key Features

• Ultra-Low Noise PLLatinum™ Technology: The LMK04808BISQX/NOPB incorporates TI's proprietary PLLatinum technology to achieve ultra-low RMS jitter performance, making it suitable for applications requiring high precision and stability.
• Dual PLLs with Integrated VCOs: This device features dual Phase-Locked Loops (PLLs) with integrated Voltage-Controlled Oscillators (VCOs) that provide flexible frequency planning and synchronization options.
• Multiple Outputs: It offers up to 14 programmable outputs that can be configured for various frequencies and formats, including LVPECL, LVDS, and HCSL, which makes it versatile for a wide range of applications.
• Programmable Input/Output: Users can program both the input and output frequency, which allows for precise clock management and distribution throughout a system.
• Integrated EEPROM: The onboard EEPROM enables users to store custom configurations, simplifying the design process and reducing system boot time.

Applications

• Telecommunications Infrastructure
• Wireless Base Stations
• Data Acquisition Systems
• High-speed Data Converters
• Test and Measurement Equipment

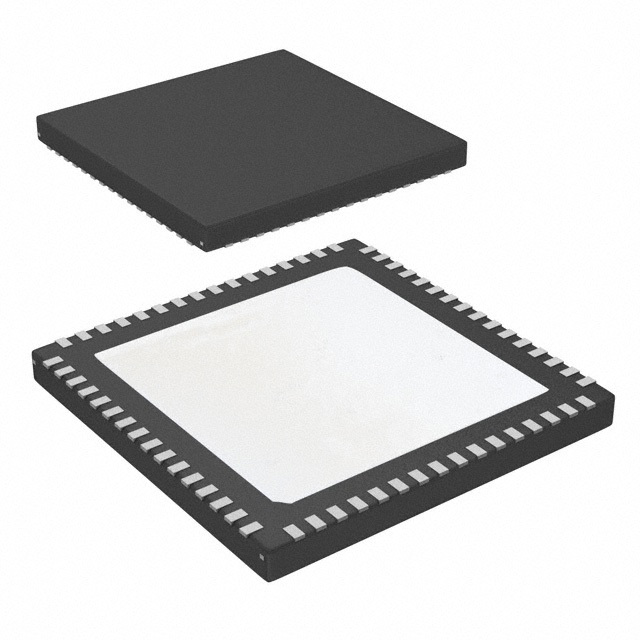

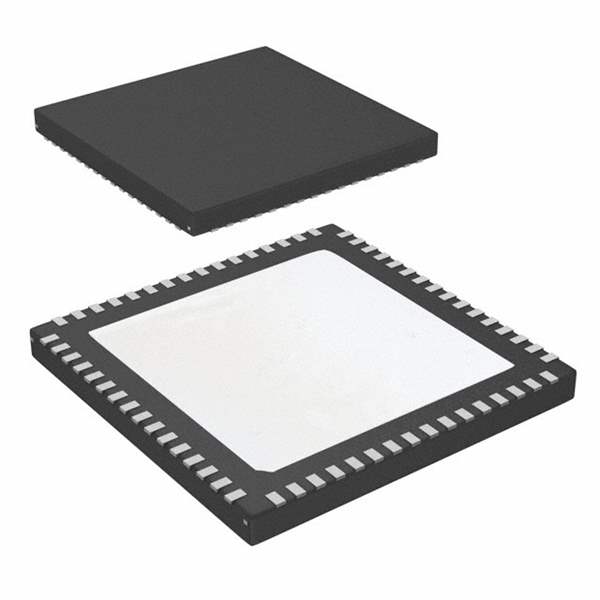

The LMK04808BISQX/NOPB is available in a compact, surface-mount 64-VFQFN package and operates over an industrial temperature range. With its advanced features and robust design, this jitter cleaner from Texas Instruments stands out as a reliable choice for managing complex clock trees and ensuring the integrity of high-speed signals.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LMK04808BISQX/NOPB is no exception. It is designed to meet stringent industrial standards, ensuring long-term reliability for systems that demand consistent performance and uptime.
