Product Overview: LMH1980MMX/NOPB

The LMH1980MMX/NOPB is a high-performance auto-detecting sync separator manufactured by Texas Instruments. Designed with precision and efficiency in mind, this integrated circuit (IC) is tailored for applications that require reliable synchronization signal extraction from both standard-definition (SD) and high-definition (HD) video inputs.

This advanced IC is capable of automatically detecting a wide range of video standards, including NTSC, PAL, and SECAM for SD video formats, as well as 720p, 1080i, and 1080p for HD video formats. The LMH1980MMX/NOPB provides clean and stable composite sync, vertical sync, and horizontal sync outputs, regardless of the video standard being processed.

Key Features:

• Auto-Detection: Automatically identifies various video standards without external intervention, simplifying the design process and enhancing system reliability.
• Multi-Format Support: Compatible with a broad range of video formats, ensuring versatility across different video applications.
• Robust Sync Outputs: Delivers accurate synchronization signals necessary for video processing and display technologies.
• Low Power Consumption: Engineered for energy efficiency, making it an ideal choice for battery-powered or energy-sensitive devices.

Applications:

The LMH1980MMX/NOPB is well-suited for a variety of applications that require video synchronization. It is commonly used in video capture devices, broadcast equipment, digital video recorders (DVRs), and any system that processes multiple video standards. Its flexibility and performance also make it a preferred choice for video format conversion and video editing systems.

Package and Quality:

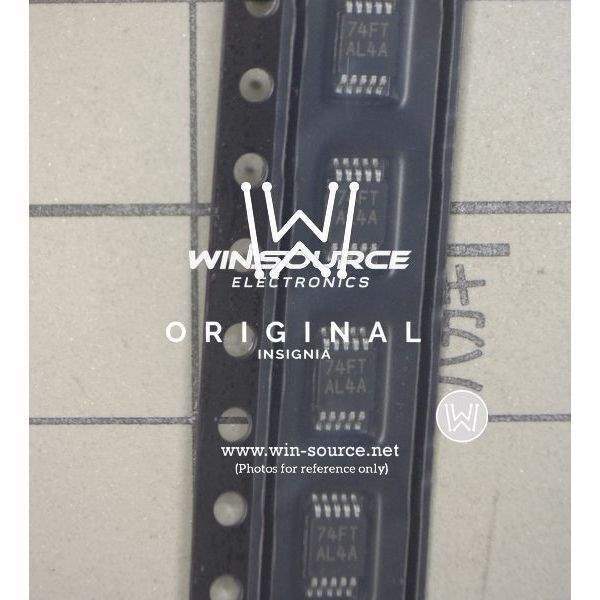

Packaged in a compact 10-pin MSOP (Mini Small Outline Package), the LMH1980MMX/NOPB is designed to occupy minimal board space while delivering maximum functionality. Additionally, as indicated by the "NOPB" (No Lead (Pb)) suffix, this product is lead-free, catering to environmentally conscious design requirements and complying with RoHS regulations.

With Texas Instruments' commitment to quality, the LMH1980MMX/NOPB is a reliable and durable solution for advanced video synchronization needs.
