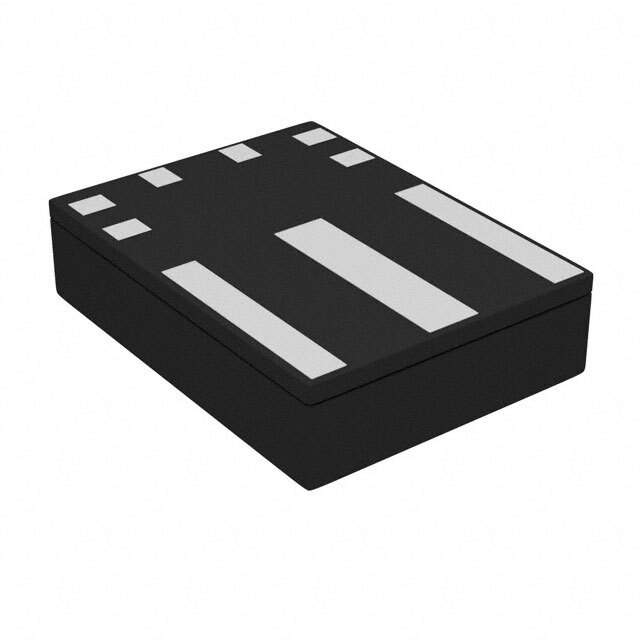

The LMG5200MOFR is a cutting-edge power module designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This compact and highly efficient device is part of TI's GaN (gallium nitride) power modules product line, which is revolutionizing power conversion in a wide range of applications.

Key Features

• High-Efficiency GaN Technology: The LMG5200MOFR incorporates gallium nitride FETs, offering superior switching speeds and reduced losses compared to traditional silicon-based solutions, which enhances overall system efficiency.
• Integrated Driver: This power module includes an optimized driver specifically designed for GaN FETs to ensure high-performance and reliable operation.
• Compact Footprint: With dimensions of just 14mm x 9mm x 4.3mm, the LMG5200MOFR is a space-saving solution that is ideal for designs where board space is at a premium.
• Wide Input Voltage Range: The module can handle an input voltage range from 10V to 80V, making it versatile for a variety of power systems.
• High Switching Frequency: Capable of operating at high switching frequencies up to 1MHz, the LMG5200MOFR allows for smaller passive components, further reducing the solution size and weight.

Applications

The LMG5200MOFR is suitable for a diverse array of applications, including:

• Data center and telecom power supplies
• AC-DC converters
• DC-DC converters
• Class-D audio amplifiers
• Motor drives and inverters

Robust and Reliable Design

With its advanced packaging technology, the LMG5200MOFR ensures robustness and reliability. The module is designed to provide excellent thermal performance, which is critical for maintaining longevity and performance in demanding environments. Additionally, the GaN FETs offer inherent advantages in terms of thermal conductivity and resistance to high temperatures.

For engineers and designers looking to harness the power of GaN technology in their power conversion systems, the LMG5200MOFR from Texas Instruments represents a highly integrated, efficient, and space-saving solution that is ready to meet the challenges of today's and tomorrow's electronic devices.
