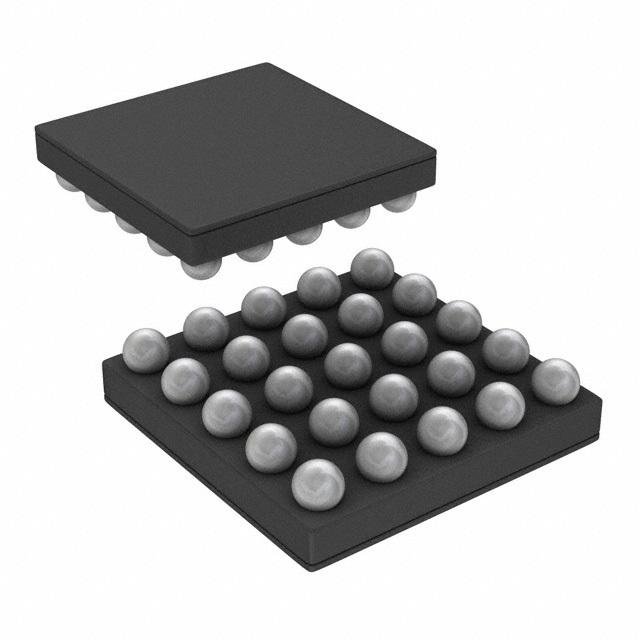

Product Overview: LM8330TME/NOPB

The LM8330TME/NOPB is a versatile, high-performance integrated circuit produced by Texas Instruments, one of the leading manufacturers in the semiconductor industry. This device is specifically designed to meet the demanding requirements of modern electronics, offering a unique combination of features that make it suitable for a wide range of applications.

This product is part of the LM8330 series, which are mobile I/O companion integrated circuits that are optimized for advanced mobile phones. The LM8330TME/NOPB supports a variety of interfaces and provides numerous functionalities, including keypad scanning, rotary encoder scanning, and system wake-up functions on key presses. This allows designers to implement complex input mechanisms while maintaining low power consumption and high reliability.

Key Features

• Keypad Interface: The LM8330TME/NOPB is capable of scanning and interfacing with a matrix keypad of up to 8x8 keys, allowing for a maximum of 64 keys. This makes it ideal for applications that require a large number of input options, such as mobile phones, remote controls, and industrial control systems.
• Rotary Encoder Inputs: It also supports rotary encoder inputs, which can be used for volume control or menu navigation in various consumer electronics.
• Low Power Consumption: Designed with power efficiency in mind, the LM8330TME/NOPB operates with a low power consumption, making it suitable for battery-powered devices.
• Wake-Up Functionality: The device can wake up the host processor from a low-power state when a key press is detected, contributing to overall power savings by allowing the main processor to remain in sleep mode until needed.
• Configurable: It offers a high level of configurability, allowing designers to customize its operation to fit specific application requirements.

Applications

The LM8330TME/NOPB is targeted primarily at the mobile phone market, but its flexibility and feature set make it suitable for a variety of other applications, including:

• Portable Media Players
• Personal Digital Assistants (PDAs)
• Handheld Gaming Devices
• Home Entertainment Systems
• Industrial Control Panels

With its robust design and comprehensive feature set, the LM8330TME/NOPB from Texas Instruments is a smart choice for developers looking for a reliable and efficient solution for human interface device control.
