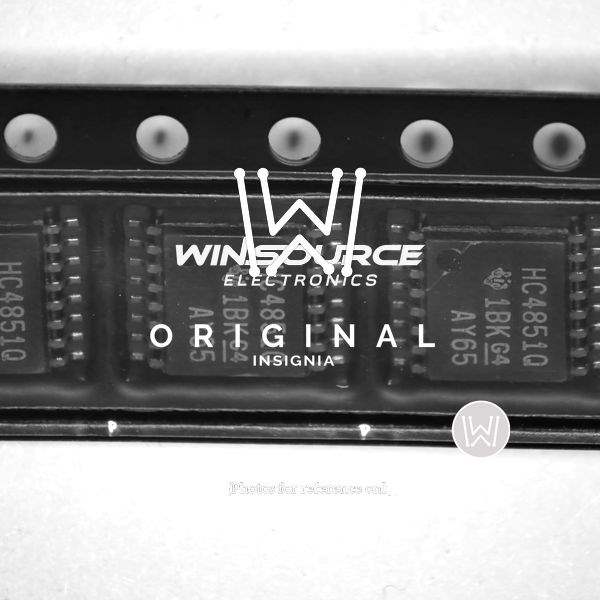

SN74HC4851QPWRQ1

Part No SN74HC4851QPWRQ1
Manufacturer Texas Instruments
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description 8-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER WITH INJECTION EFFECT CONTROL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Series Automotive, AEC-Q100
Packaging Reel - TR
Number of Circuits 1
On-State Resistance (Maximum) 195 Ohm
Channel-to-Channel Matching (ΔRon) 3 Ohm
Operating Supply Voltage 2 V ~ 6 V
Switch Time (Ton, Toff) (Maximum) 78ns, 78ns
Channel Capacitance (CS(off), CD(off)) 22pF
Current - Leakage (IS(off)) (Maximum) 200nA
Operating Temperature Range -40°C ~ 125°C (TA)
Package 16-TSSOP (0.173", 4.40mm Width)
Manufacturer Package 16-TSSOP
Win Source Part Number 1254662-SN74HC4851QPWRQ1
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name SN74HC4851-Q1
Introduction Date January 07, 2009
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SN74HC4851QPWRQ1 CAD Model

Description

The SN74HC4851QPWRQ1 from Texas Instruments is a robust, automotive-grade analog multiplexer/demultiplexer that offers a single 8-channel configuration. This component is part of the 74HC family, which is well-known for its high-speed CMOS logic. The device is specifically designed to handle a wide range of automotive and industrial applications, providing a reliable solution for signal routing.

The SN74HC4851QPWRQ1 features a wide voltage range of 2 V to 6 V, which makes it versatile for systems that operate on different voltage levels. Its low power consumption is an excellent fit for energy-sensitive applications. Additionally, this multiplexer/demultiplexer boasts a low ON-state resistance, ensuring minimal signal distortion and high fidelity in signal switching.

Each channel of the SN74HC4851QPWRQ1 can be individually controlled via the binary address lines, which are common to all the switches. The device also includes an inhibit input to simultaneously open all channels and disable all switch operations. This feature is particularly useful for power-saving modes or when the device is not in use.

The SN74HC4851QPWRQ1 has been designed with ESD (Electrostatic Discharge) protection, which safeguards the device from the potential damage caused by static electricity. This protection is crucial for maintaining the longevity and reliability of the component in harsh automotive environments.

Packaged in a TSSOP (Thin Shrink Small Outline Package), the SN74HC4851QPWRQ1 offers a compact footprint, making it suitable for space-constrained applications. The device is also characterized for operation from -40°C to 85°C, ensuring performance across a wide temperature range.

In summary, the SN74HC4851QPWRQ1 from Texas Instruments is an excellent choice for designers looking for a high-performance, automotive-grade analog multiplexer/demultiplexer. With its wide voltage range, low power consumption, and robust ESD protection, it stands out as a reliable component for complex automotive and industrial systems.
