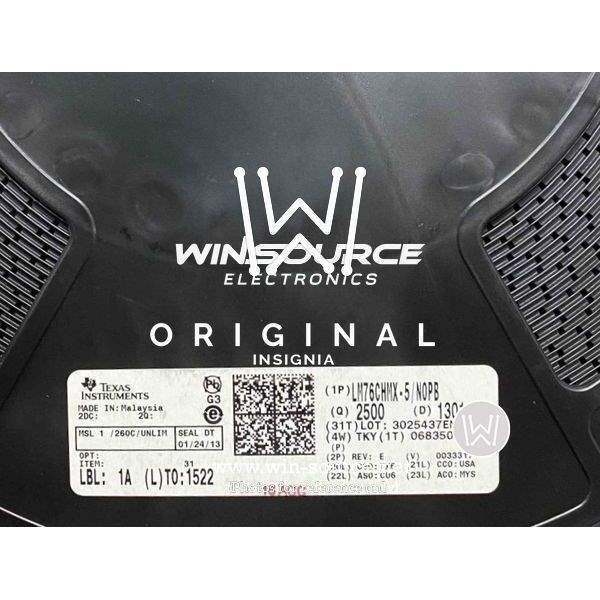

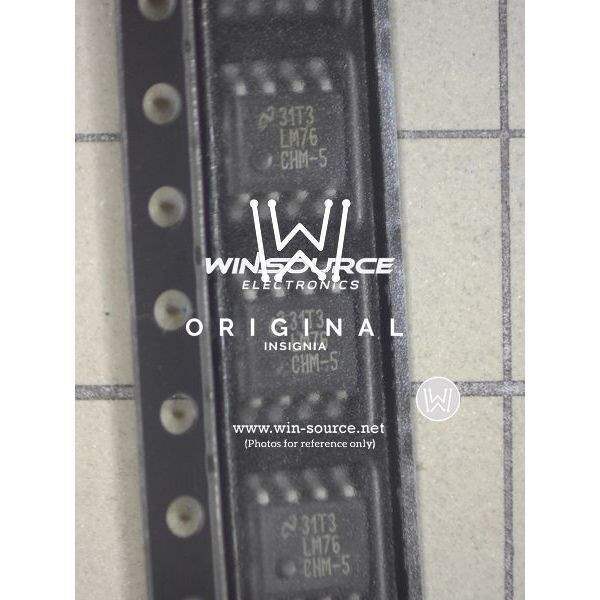

LM76CHMX-5/NOPB Texas Instruments LM76CHMX-5/NOPB label picture LM76CHMX-5/NOPB real image
Same model may have multiple batches, images only for reference.
LM76CHMX-5/NOPB Texas Instruments LM76CHMX-5/NOPB label picture LM76CHMX-5/NOPB real image
LM76CHMX-5/NOPB Texas Instruments LM76CHMX-5/NOPB label picture LM76CHMX-5/NOPB real image
Same model may have multiple batches, images only for reference.

LM76CHMX-5/NOPB

Part No LM76CHMX-5/NOPB
Manufacturer Texas Instruments
Catalog Temperature Sensors - Analog and Digital Output
Description SENSOR TEMPERATURE I2C 8SOIC
Datasheet
LM76CHMX-5/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -20°C to 85°C
Output Type I2C
Supply Voltage - Operating 4.5 V to 5.5 V
Resolution 12 b
Features Output Switch, Programmable Limit, Shutdown Mode
Accuracy - Highest (Lowest) ±0.5°C (±1°C)
Testing Conditions 25°C (-10°C to 45°C)
Temperature Range - Operating -20°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 141907-LM76CHMX-5/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM76CHMX-5/NOPB CAD Model

Description

The LM76CHMX-5/NOPB from Texas Instruments is a high-performance digital temperature sensor and thermal watchdog with a two-wire interface. It has a temperature range of -55°C to +125°C, with a high accuracy rating of ±2°C.

  • Output: Digital (Celsius)
  • User-Programmable Over-Temperature Shutdown: Available
  • Low Operating Voltage: 2.7V to 5.5V
  • Low Supply Current: Yes
  • Fast Conversion Rate: Available
  • Package: 8-pin MSOP

The LM76CHMX-5/NOPB is a user-friendly, reliable, and accurate temperature sensor that is suitable for various applications, including battery-powered devices and compact systems.
