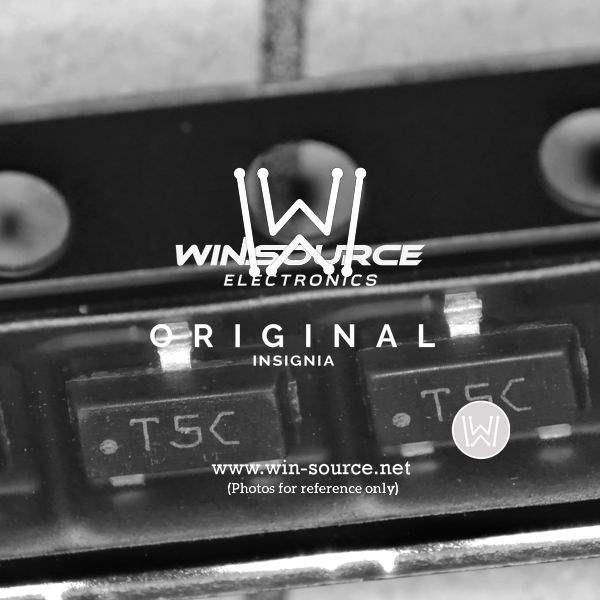

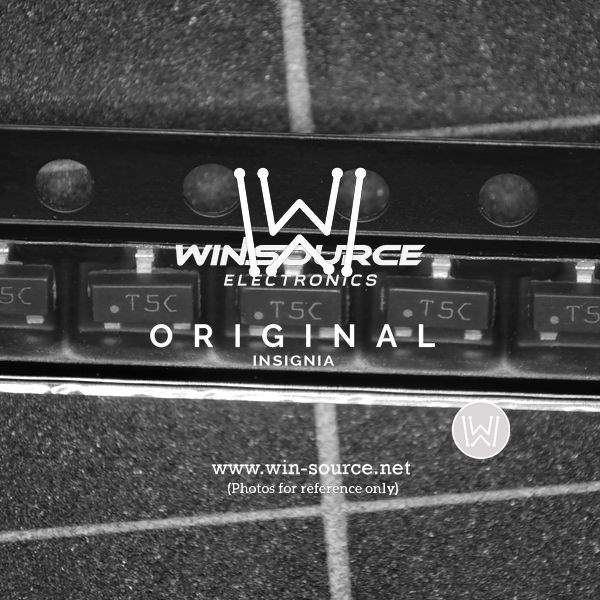

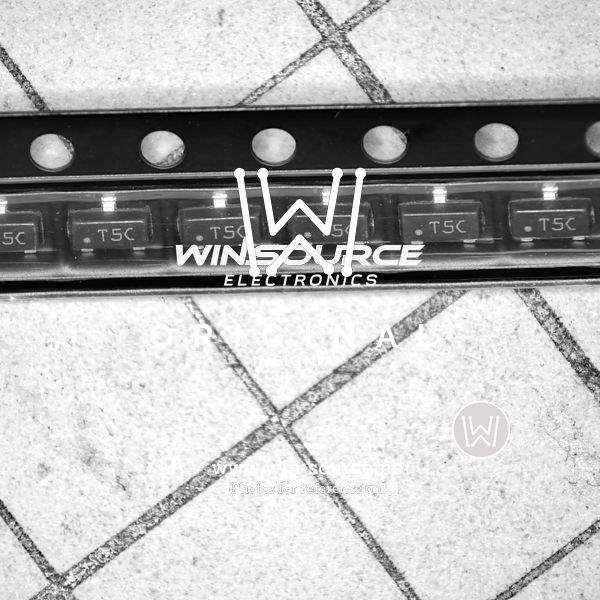

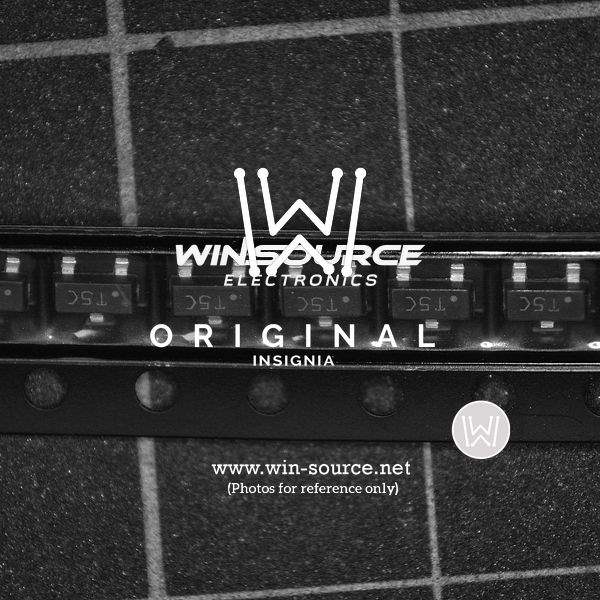

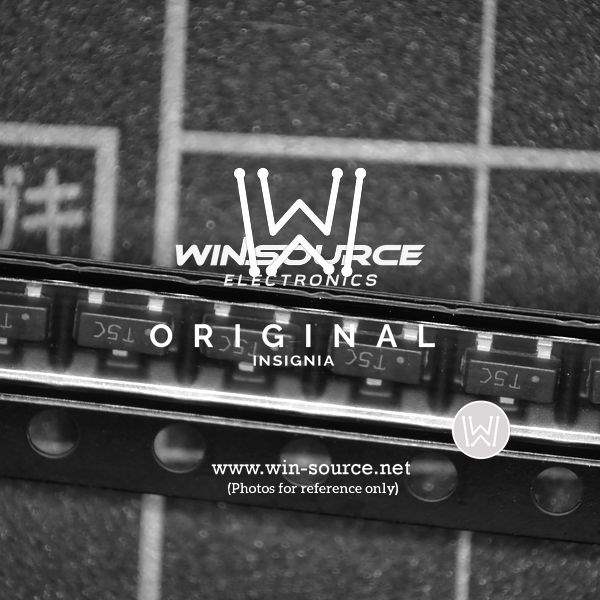

LM50CIM3

Part No LM50CIM3
Manufacturer Texas Instruments
Catalog Temperature Sensors - Analog and Digital Output
Description SENSOR TEMP ANLG VOLT SOT-23-3
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Analog, Local
Sensing Temperature - Local -40°C to 125°C
Output Type Analog Voltage
Supply Voltage - Operating 4.5 V to 10 V
Resolution 10mV/°C
Accuracy - Highest (Lowest) ±3°C (±4°C)
Testing Conditions 25°C (-40°C to 125°C)
Temperature Range - Operating -40°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 093497-LM50CIM3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Automotive, Computers & Computer Peripherals, HVAC, Medical
Ultra Librarian 3D Model Ultra Librarian LM50CIM3 CAD Model

Description

The LM50CIM3 from Texas Instruments is an exceptional precision integrated-circuit temperature sensor.

  • Output: Output voltage linearly proportional to the Celsius (Centigrade) temperature
  • Temperature Range: -55°C to +130°C
  • Accuracy: ±2.0°C @ room temperature, and ±3.0°C over the full -55°C to +130°C temperature range
  • Calibration: Does not require an external calibration
  • Scale Factor: Provides a 10mV/°C scale factor
  • Operating Voltage: Operates over a 2.7V to 10V range
  • Output Impedance: Low-output impedance, linear output, and precise inherent calibration
  • Package: Space-saving SOT-23 surface-mount package
  • Self-Heating: Very low self-heating effect, less than 0.1°C in still air
  • Supply Current: Low supply current of 130µA (max)
