LM4755TSX/NOPB

Part No LM4755TSX/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description IC AMP AUDIO PWR 11W AB TO263-9
Datasheet
LM4755TSX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 11W x 2 @ 4 Ohm
Supply Voltage - Operating 9 V to 32 V
Features Mute, Short-Circuit and Thermal Protection
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)

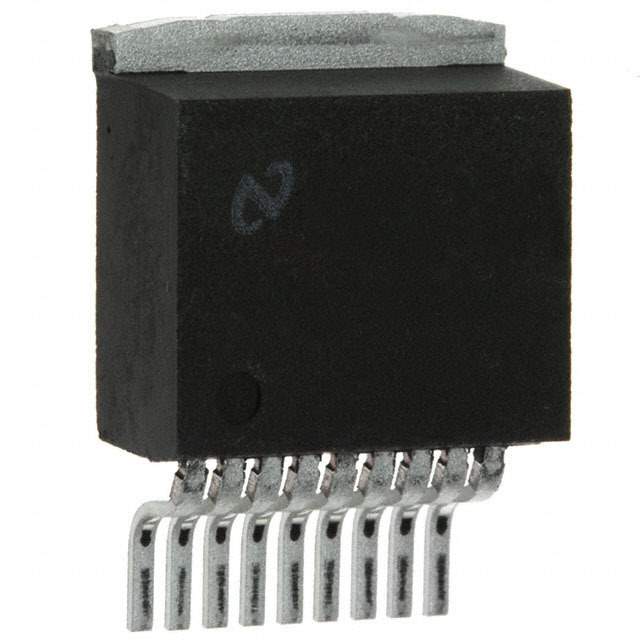

Case / Package TO-263-9
Dimension TO-263-10 (9 Leads + Tab)
Win Source Part Number 002604-LM4755TSX/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM4755TSX/NOPB CAD Model

Description

The LM4755TSX/NOPB is a high-quality, advanced stereo audio power amplifier produced by the globally recognized electronics manufacturer, Texas Instruments.

  • Power Output: 11W per channel into an 8Ω load @ 10% total harmonic distortion plus noise (THD+N), or 7W per channel into an 8Ω load @ 0.5% THD+N.
  • Protective Features: Mute function, standby mode, under-voltage protection.
  • Protection: Thermal and short circuit protection.
  • Supply Voltage Range: 9V - 28V.
  • Package: 15-pin surface-mount package.
