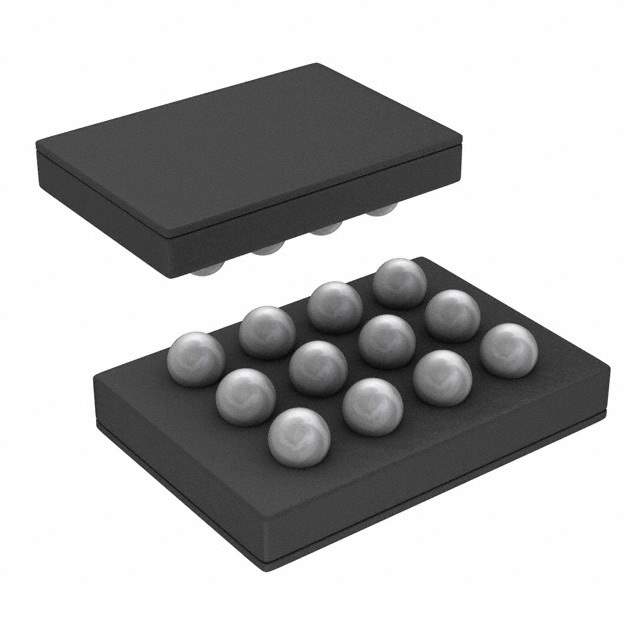

LM3686TLX-AAEF Real Image
Same model may have multiple batches, images only for reference.

LM3686TLX-AAEF

Part No LM3686TLX-AAEF
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear + Switching
Description IC REG TRPL BUCK/LDO SYNC 12USMD
Datasheet
LM3686TLX-AAEF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Topology Step-Down (Buck) Synchronous (1), Linear (LDO) (2)
Purpose Any Function
Number of Outputs 3
Frequency - Switching 3MHz
Voltage/Current - Output 1 1.8V, 600mA
Voltage/Current - Output 2 1.2V, 350mA
Voltage/Current - Output 3 3V, 300mA
w/LED Driver No
w/Supervisor No
w/Sequencer No
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 206374-LM3686TLX-AAEF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3686TLX-AAEF CAD Model

Description

The Texas Instruments LM3686TLX-AAEF from Texas Instruments is a highly efficient, advanced power management device that is specifically designed to cater to the power needs of mobile devices such as smartphones, tablets, and other portable electronics.

  • Efficiency: Up to 93%
  • Input Voltage Range: 2.7V to 5.5V
  • Switching Frequency: Up to 2.25 MHz
  • Safety Features: Over-temperature and under-voltage lockout protection
  • Package: micro SMD
