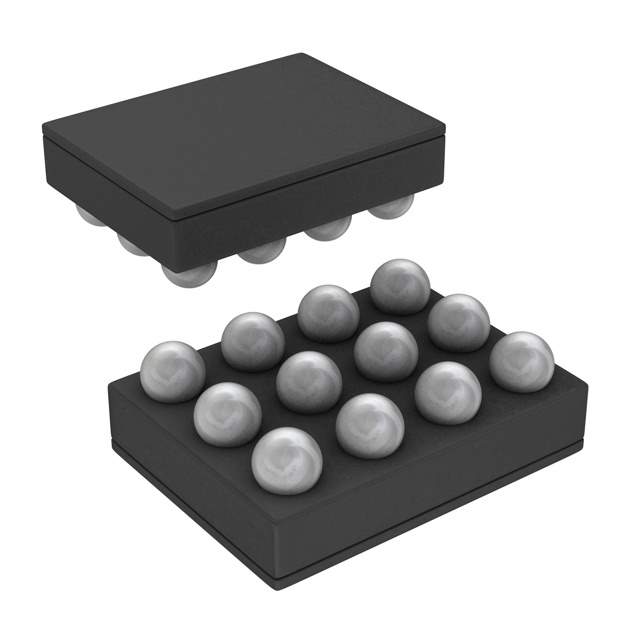

LM3630ATMX

Name: LM3630ATMX
Brand: Texas Instruments
SKU: 183763
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LM3630ATMX
Manufacturer	Texas Instruments
Catalog	PMIC - LED Drivers
Description	IC LED DRIVER RGLTR DIM 12DSBGA
Datasheet	LM3630ATMX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	2
Operating Input Voltage(Min)	2.3V
Maximum Supply Voltage	5.5V
Channel Output Current	28.5mA
Dimming	PWM
Applications	Backlight
Temperature Range - Operating	-40°C to 85°C (TA)
Mounting	SMD (SMT)
Case / Package	12-DSBGA
Win Source Part Number	206373-LM3630ATMX
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LM3630ATMX CAD Model

Description

The LM3630ATMX is an advanced, high-performance LED backlight driver developed by Texas Instruments (TI), a renowned global semiconductor company.

LEDs: Drive up to 11 LEDs in series
LED Strings: Two independently controlled LED strings
Efficiency: High efficiency, up to 90%
Converter: Boost converter
Current Sinks: Two current sinks
Input: Programmable ambient light sensor input
Protection: Over-voltage, over-current, and thermal shutdown protection
Package: Small 12-bump DSBGA package
