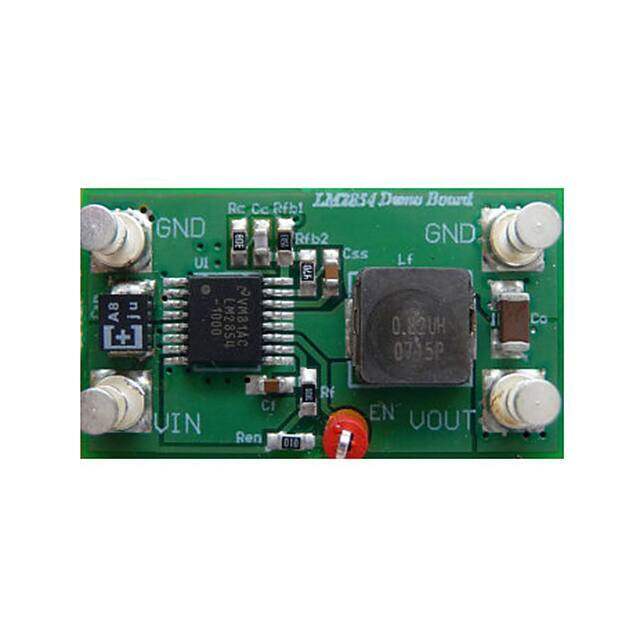

The LM2854-1000EVAL from Texas Instruments is a comprehensive evaluation platform designed for the LM2854 series of synchronous buck regulators. This evaluation kit is tailored to assist electrical engineers and product designers in assessing the performance of the LM2854 power management ICs in their specific applications.

Key Features

• Integrated Synchronous Buck Regulator: The heart of the evaluation board is the LM2854 chip, a highly efficient, integrated synchronous buck regulator capable of delivering up to 1A of continuous load current.
• Adjustable Output Voltage: Users can configure the output voltage from 0.8V to 5.5V to match the requirements of their target application, providing a versatile power solution.
• High-Efficiency Operation: The LM2854-1000EVAL offers high-efficiency power conversion, which is critical for reducing heat and improving system reliability in various applications.
• Simple and Easy to Use: The evaluation board comes with all the necessary components pre-installed, making it straightforward for users to set up and begin testing without the need for complex configurations.
• Comprehensive Test Points: Multiple test points are available on the board, providing convenient access for monitoring the performance parameters such as input and output voltages, switching frequency, and other critical signals.

Applications

The LM2854-1000EVAL is suitable for a wide range of applications, including but not limited to:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• Point of load applications

Technical Specifications

The evaluation board is designed to highlight the LM2854's features, which include:

• Input voltage range: 4.5V to 5.5V
• Output current capability: Up to 1A
• High efficiency: Up to 95%
• Switching frequency: 500 kHz (fixed)
• Thermal shutdown and over-current protection

With the LM2854-1000EVAL, designers can quickly and efficiently evaluate the capabilities of the LM2854 buck regulator and expedite the development process for their power supply solutions.
