Texas Instruments LM1875T/LF02 Audio Power Amplifier

The LM1875T/LF02 from Texas Instruments is a monolithic power amplifier offering very low distortion and high quality performance for consumer audio applications. With an impressive signal-to-noise ratio, the LM1875T/LF02 provides cleaner sound across a wide audio spectrum. It is a versatile component that is suitable for a broad range of audio applications, including high-fidelity amplifiers, television sound systems, and more.

Key Features:

• High Performance: Delivers up to 20 watts of continuous average power to an 8Ω load with less than 0.1% THD+N from 20Hz to 20kHz.
• Low Distortion: Ensures high-quality audio reproduction with its low total harmonic distortion (THD) plus noise specification.
• Wide Power Bandwidth: Large power bandwidth of 70kHz provides exceptional audio clarity and response.
• Protection Features: Includes an internal protection circuitry that guards against over-temperature conditions and short circuits, as well as a safe operating area for output transistors.
• Stable with Reactive Loads: Exhibits excellent stability with capacitive and inductive loads, making it a reliable choice for a variety of speaker types.

Applications:

• High-fidelity audio amplifiers
• Bridge amplifiers
• Surround sound systems
• Active speakers
• Compact stereo
• Instrumentation amplifiers

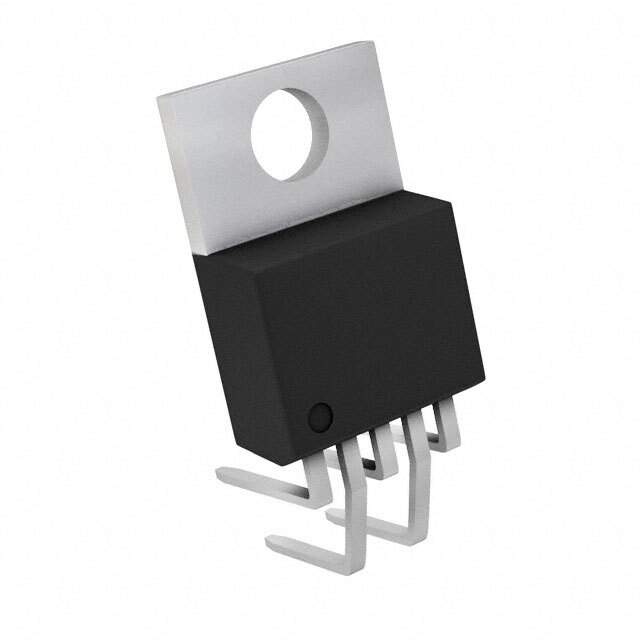

The LM1875T/LF02 comes in a TO-220-5 package, which is designed for easy mounting and integration into a wide range of audio equipment. Its simple external circuitry allows for an easy design process, making it a favorite among hobbyists and professionals alike. Whether you're building a custom amplifier or repairing existing audio equipment, the LM1875T/LF02 provides the performance and reliability expected from a leader in analog technology, Texas Instruments.
