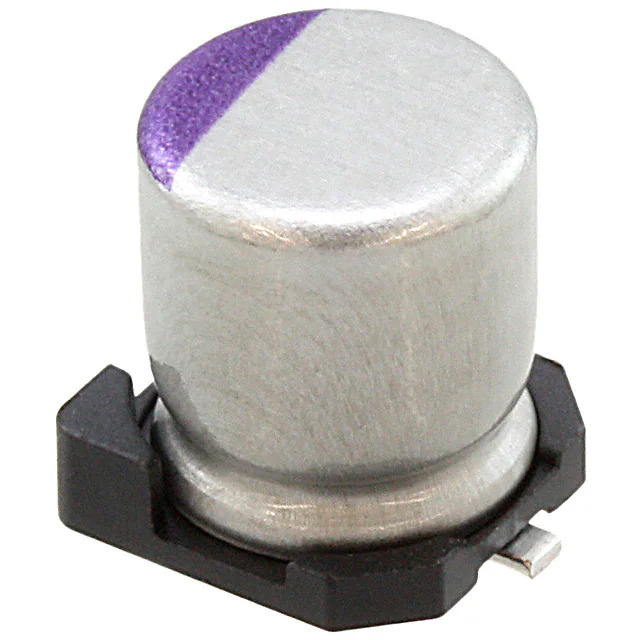

Same model may have multiple batches, images only for reference.

6SVPE220M

Name: 6SVPE220M
Brand: Panasonic
SKU: 1359497
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6SVPE220M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 220UF 20% 6.3V SMD / 220 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPE
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	6.3 V
ESR (Equivalent Series Resistance)	10mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	195 mA @ 120 Hz
Ripple Current @ High Frequency	3.9 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	6SVPE
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359497-6SVPE220M
Ultra Librarian 3D Model	Ultra Librarian 6SVPE220M CAD Model

Description

The 1359497-6SVPE220M is a polymer capacitor from Panasonic Electronic Components manufactured by Panasonic Electronic Components.

Series: OS-CON™ SVPE series
Capacitance: 220 μF
Voltage Rating: 6.3 V
Tolerance: ±20%
ESR: 10 mOhm
Application: Designed for general-purpose applications
Ripple Current (Low Frequency): 195 mA @ 120 Hz
Ripple Current (High Frequency): 3.9 A @ 100 kHz
Mounting: Surface mountable
Package: Radial, can - SMD
Size: 0.248" in diameter and a height of 0.236"
Lifetime: 2000 hours @ a temperature of 105°C
REACH: REACH unaffected
ECCN: EAR99
Status: Active capacitor
Suitability: Suitable for various electronic projects
Benefit: Can provide reliable performance
