Same model may have multiple batches, images only for reference.

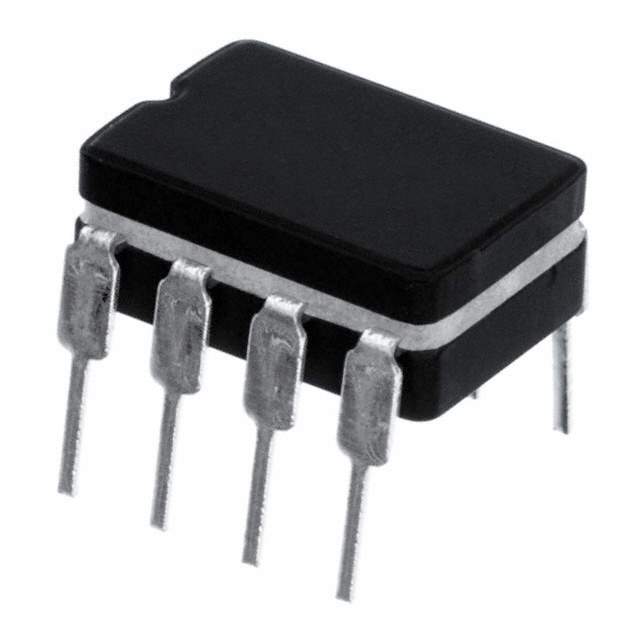

LM158J Real Image
Same model may have multiple batches, images only for reference.

LM158J

Part No LM158J
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OP AMP LOW PWR DUAL 8-CDIP
Datasheet
LM158J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type General Purpose
Number of Circuits 2
Slew Rate 0.5 V/μs
Gain Bandwidth Product (GBP) 1MHz
Current - Input Bias 45nA
Voltage - Input Offset 2mV
Operating Supply Current 1mA
Channel Output Current 40mA
Supply Voltage - Operating 3 V to 32 V, ±1.5 V to 16 V
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Case / Package 8-CERDIP
Win Source Part Number 206295-LM158J
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing, Industrial
Ultra Librarian 3D Model Ultra Librarian LM158J CAD Model

Description

The LM158J is a high-performance, dual operational amplifier produced by the renowned manufacturer, Texas Instruments.

  • Operating voltage range: 2V to 32V
  • Operating voltage range: ±1V to ±16V
  • Slew rate: 0.5V/µs
  • Gain bandwidth product: 1MHz
