The ISO7821LLDWW is a state-of-the-art digital isolator designed and manufactured by Texas Instruments. This device is part of TI's extensive portfolio of isolation products, offering high-performance solutions for a variety of applications that require signal isolation to protect against ground potential differences and noise, while enabling data transfer across an isolation barrier.

Key Features

• High Isolation Voltage: The ISO7821LLDWW provides an isolation voltage of 5000 Vrms for 1 minute per UL 1577, ensuring robust protection for sensitive circuits.
• High-Speed Data Transfer: With signaling rates up to 100 Mbps, this isolator is ideal for high-speed data communications without compromising signal integrity.
• Low Power Consumption: Designed for efficiency, the ISO7821LLDWW operates with low power consumption, making it suitable for power-sensitive applications.
• Long Lifespan: The device is built for reliability and longevity, with a projected lifetime of over 40 years at a temperature of 150°C, ensuring consistent performance over extended periods.
• Robust Electromagnetic Compatibility (EMC): Excellent EMC performance with low emissions and high immunity ensures stable operation in electrically noisy environments.

Applications

The ISO7821LLDWW is versatile and can be used in a wide range of applications, including:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Motor drives and inverters
• Power supplies for isolated data communication
• Green energy applications such as solar inverters and wind turbines

Package and Quality

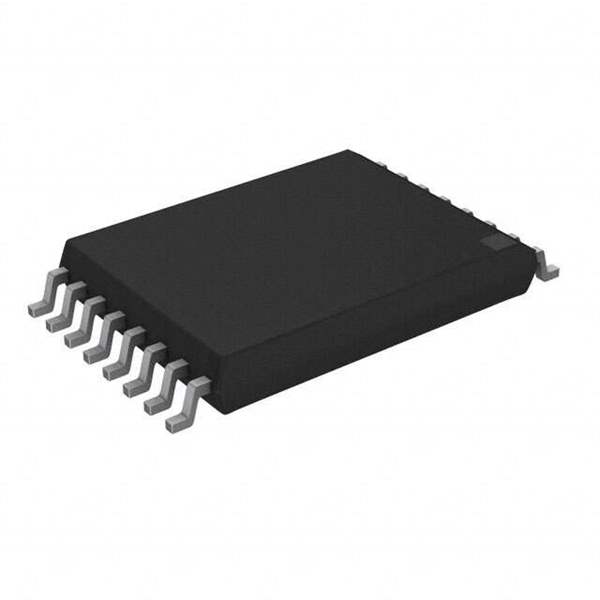

The ISO7821LLDWW comes in a compact, surface-mount 16-pin SOIC package, making it easy to integrate into various circuit designs. The device is compliant with industry standards, including RoHS and is manufactured under TI's strict quality control processes, ensuring high reliability and performance consistent with the most demanding industry requirements.
