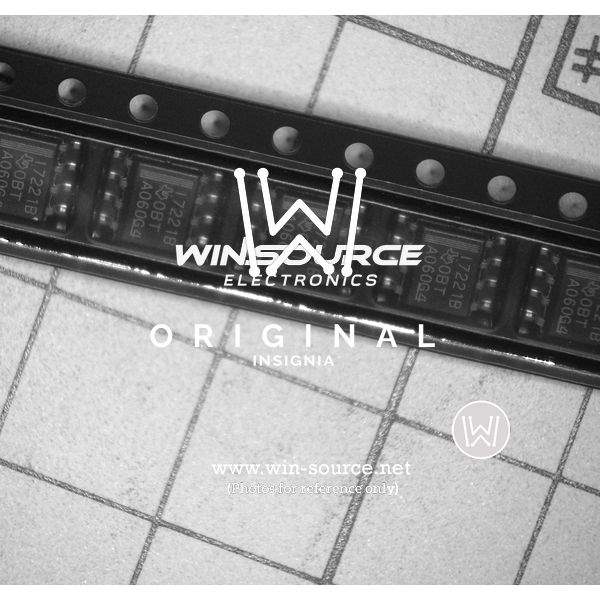

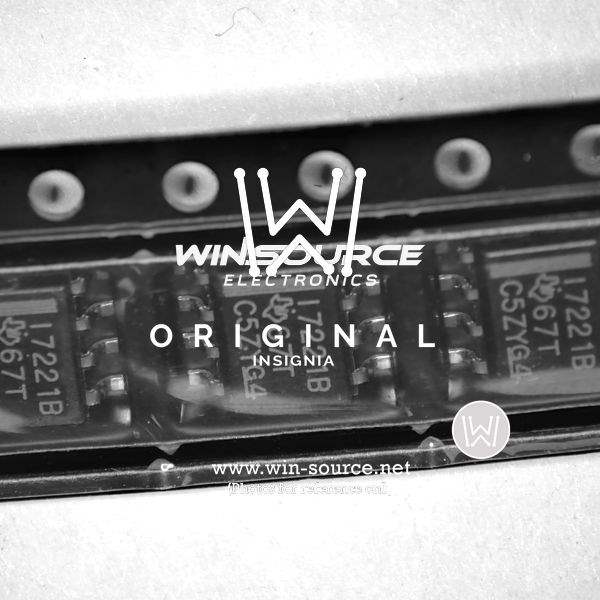

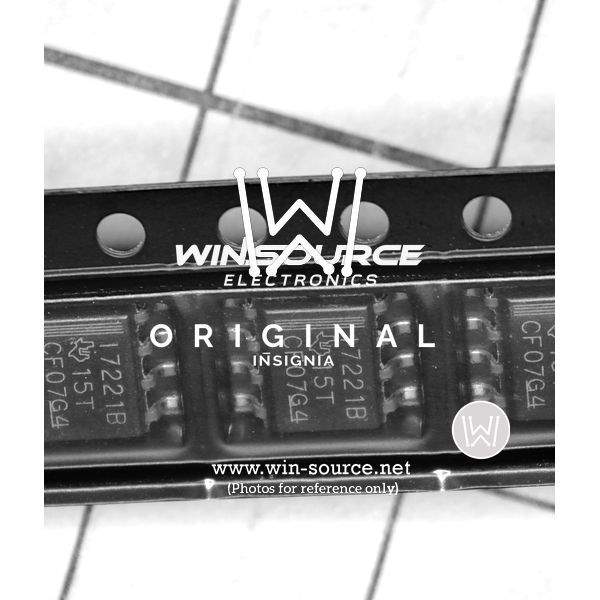

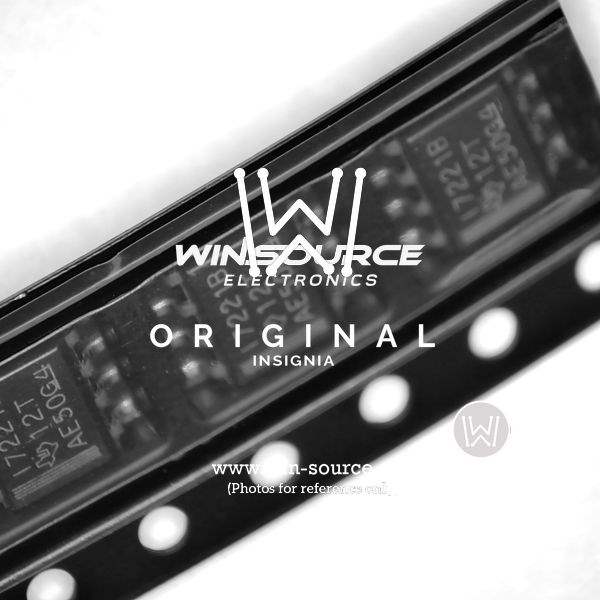

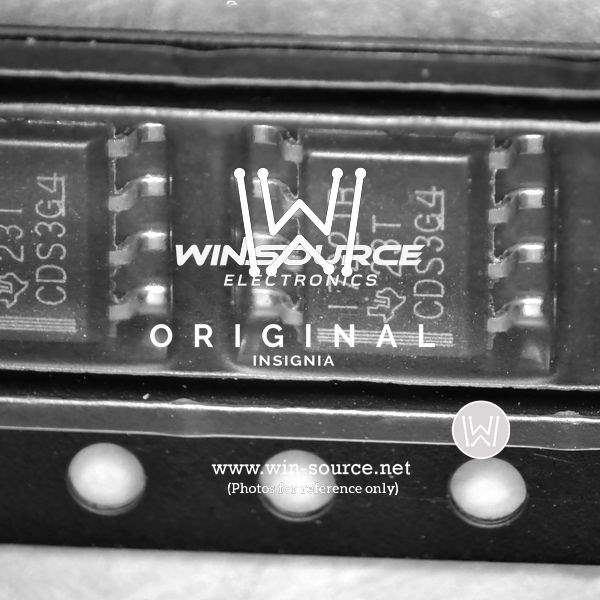

ISO7221BDR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 5Mbps
Propagation Delay tpLH / tpHL (Max) 70ns, 70ns
Pulse Width Distortion (Max) 3ns
Rise and Fall Time 1ns, 1ns
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOIC
Win Source Part Number 002048-ISO7221BDR
Family Name ISO7221B
Introduction Date February 01, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISO7221BDR CAD Model

Description

The ISO7221BDR is a high-performance, digital isolator product developed by Texas Instruments, a leading global semiconductor company.

  • Channels: Dual-channel with 1/1 channel directionality
  • Insulation: Silicon dioxide (SiO2)
  • Isolation: Up to 2500 Vrms for 1 minute per UL1577
  • Data Rate: Up to 1 Mbps
  • Power Consumption: 1.8 mA per channel @ 1 Mbps
  • Package: Compact 8-pin SOIC package
  • Temperature Range: -40°C to +125°C
