ISO7741QDWWRQ1 High-Speed, Quad-Channel Digital Isolator

The ISO7741QDWWRQ1 is a cutting-edge, high-speed, quad-channel digital isolator manufactured by Texas Instruments, designed to provide robust signal isolation in a variety of industrial and automotive applications. This device is part of Texas Instruments' extensive family of isolation products, which are known for their reliability and performance in challenging environments.

Featuring four isolated channels with two forward and two reverse-direction channels, the ISO7741QDWWRQ1 ensures a bidirectional data flow, making it highly versatile for data communication across isolation barriers. With a data rate of up to 100 Mbps, this digital isolator facilitates rapid data transfer while maintaining signal integrity, even in the presence of electrical noise and transient voltage spikes commonly found in industrial settings.

The ISO7741QDWWRQ1 is engineered with Texas Instruments' proprietary silicon dioxide (SiO2) insulation barrier, providing a high isolation voltage of 5000 Vrms for 1 minute per UL 1577. This robust isolation helps safeguard sensitive electronic components from high-voltage environments, enhancing system safety and longevity. Additionally, the device is qualified for automotive applications, meeting the stringent AEC-Q100 Grade 1 standards, which ensures operation in extreme temperature ranges from -40°C to +125°C.

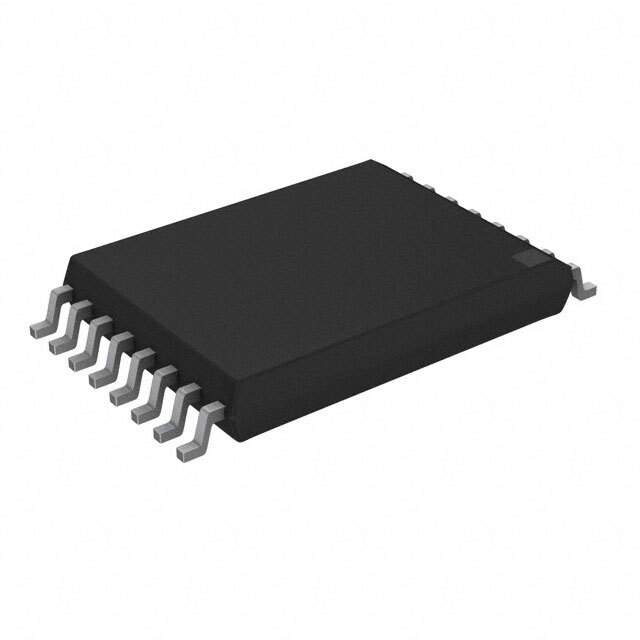

One of the key features of the ISO7741QDWWRQ1 is its low power consumption, making it suitable for energy-sensitive applications. It also exhibits low propagation delay and high timing accuracy, which are critical for synchronized data transfer and control operations. The device comes in a compact 16-pin SOIC (Small Outline Integrated Circuit) package, minimizing board space and simplifying the design process.

Furthermore, the ISO7741QDWWRQ1 is equipped with fail-safe design features that ensure a default output state if the input power is lost, thereby enhancing the system's reliability. Its integrated noise filters on the inputs provide additional protection against transient noise and glitches, ensuring clean and stable operation.

In summary, the ISO7741QDWWRQ1 from Texas Instruments is an ideal solution for designers looking for a high-performance, reliable, and automotive-grade digital isolator. Its advanced features and robust design make it suitable for a wide range of applications, including but not limited to industrial automation, motor control, and electric vehicles.
