The ISO5852SEVM is an evaluation module designed for the ISO5852S reinforced isolated gate driver from Texas Instruments. This module provides engineers with a platform to test and evaluate the performance of the ISO5852S device, which is specifically tailored for driving power switches like IGBTs and SiC MOSFETs in various applications.

Key Features

• Reinforced Isolation: The ISO5852S provides reinforced galvanic isolation up to 5.7 kVRMS, which is suitable for high-voltage applications where electrical isolation is critical for safety and performance.
• High Drive Strength: With a peak output current of +/-4 A, the module ensures robust drive capability to turn on and off power transistors efficiently.
• Integrated Protection Features: The device includes under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown, ensuring the safe operation of the power stage.
• Wide Supply Range: The ISO5852SEVM supports a wide input VCC range from 15 V to 30 V, accommodating various power supply configurations.

Applications

The ISO5852SEVM can be used in a range of applications, including motor drives, renewable energy inverters, power supplies, and any other system that requires reliable gate driving with isolation. Its robust design and advanced features make it an ideal choice for high-performance and safety-critical environments.

Design and Layout

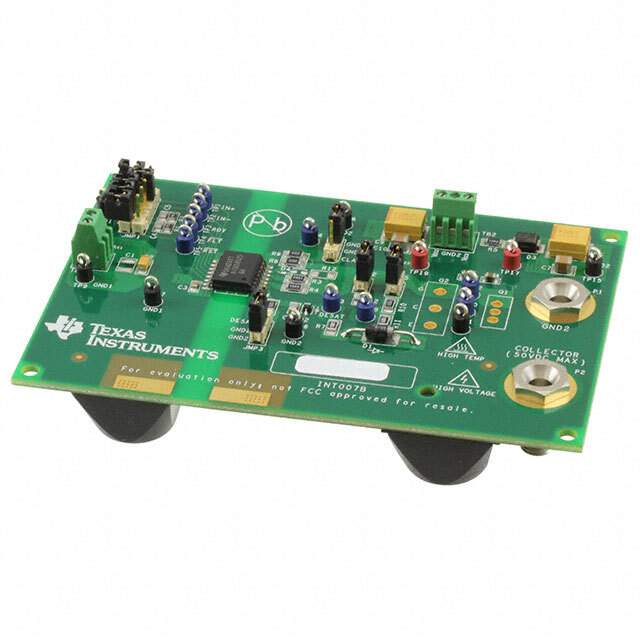

The evaluation module comes with a compact and user-friendly layout, providing easy access to all the critical pins of the ISO5852S device. It includes onboard connectors and test points for convenient interfacing with external test and application circuitry. The module also features a standard header compatible with breadboards and test setups, facilitating quick and easy prototyping.

Support and Resources

Texas Instruments offers comprehensive support and resources for the ISO5852SEVM, including detailed documentation, design files, and application notes. Users can leverage these resources to accelerate the development process and effectively integrate the ISO5852S into their designs.

To learn more about the ISO5852SEVM and access technical documentation, visit the official Texas Instruments website or contact their support team for further assistance.
