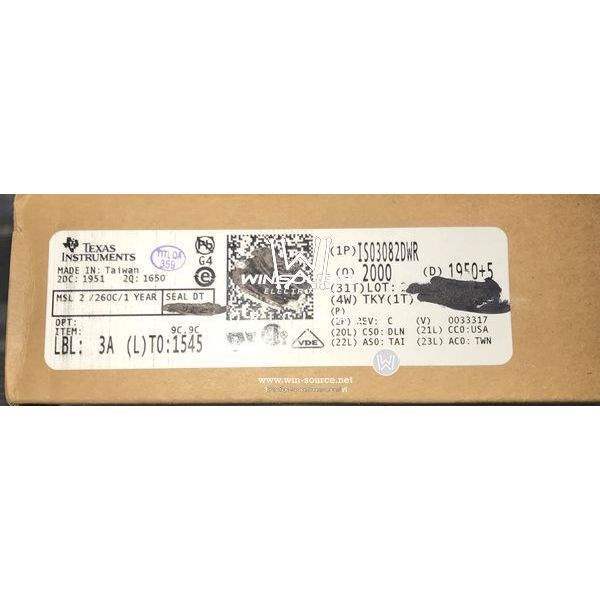

Same model may have multiple batches, images only for reference.
ISO3082DWR Texas Instruments ISO3082DWR Real Image ISO3082DWR label picture ISO3082DWR label picture 2 ISO3082DWR real image546 ISO3082DWR real image547 ISO3082DWR real image548 ISO3082DWR Real Image1 ISO3082DWR Real Image2 ISO3082DWR Real Image3 ISO3082DWR Real Image4 ISO3082DWR Real Image5
ISO3082DWR Texas Instruments ISO3082DWR Real Image ISO3082DWR label picture ISO3082DWR label picture 2 ISO3082DWR real image546 ISO3082DWR real image547 ISO3082DWR real image548 ISO3082DWR Real Image1 ISO3082DWR Real Image2 ISO3082DWR Real Image3 ISO3082DWR Real Image4 ISO3082DWR Real Image5
Same model may have multiple batches, images only for reference.

ISO3082DWR

Part No ISO3082DWR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DG ISO 2.5KV RS422/RS485 16SOIC
Datasheet
ISO3082DWR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type RS422, RS485
Isolated Power No
Number of Channels 3
Inputs - Side 1/Side 2 2/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 200kbps
Supply Voltage - Operating 3.15 V to 5.5 V, 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Case / Package 16-SOIC
Win Source Part Number 002039-ISO3082DWR
Family Name ISO3082
Introduction Date April 01, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ISO3082DWR CAD Model

Description

The ISO3082DWR is a high-performance, feature-rich product from the renowned technology company, Texas Instruments.

  • Type: Robust, isolated 1/1 (transmit/receive) RS-485 transceiver
  • Feature: Isolation barrier
  • Feature: Fail-safe receiver
  • Feature: Thermal shutdown protection
  • Feature: Operates over a wide supply range
  • Feature: Low power consumption
  • Feature: High data rate capability
  • Feature: Supports a wide temperature range
  • Package: Compact, surface-mount SOIC (Small Outline Integrated Circuit)
