The Texas Instruments ISO1212DBQR is a robust, high-performance digital isolator designed to provide electrical isolation in a wide range of industrial and commercial applications. This component is part of the ISO1212 series and is known for its reliability and efficiency in protecting sensitive circuitry from high-voltage spikes and noise that can occur in harsh electrical environments.

Key Features

• Isolation Rating: The ISO1212DBQR offers an impressive isolation rating of up to 5 kVrms for 1 minute per UL 1577, which ensures the safe separation of circuits and protection against high voltage transients.
• Channels: It includes two independent isolation channels, providing versatility in applications that require multiple isolations within the same package.
• Data Rate: With a data rate of up to 1 Mbps, this digital isolator allows for rapid communication between isolated domains, making it suitable for high-speed digital interfaces.
• Supply Range: The device operates over a wide supply voltage range of 3 V to 5.5 V, accommodating various system power levels.
• Low Power Consumption: It is designed for energy efficiency, with low power consumption that helps to minimize the thermal footprint and power loss in systems.

Applications

The ISO1212DBQR is ideal for a variety of applications, including:

• Industrial automation and control systems
• Motor control circuits
• Power inverters and converters
• Medical equipment with stringent isolation requirements
• Green energy applications, such as solar inverters and wind turbines

Package and Quality

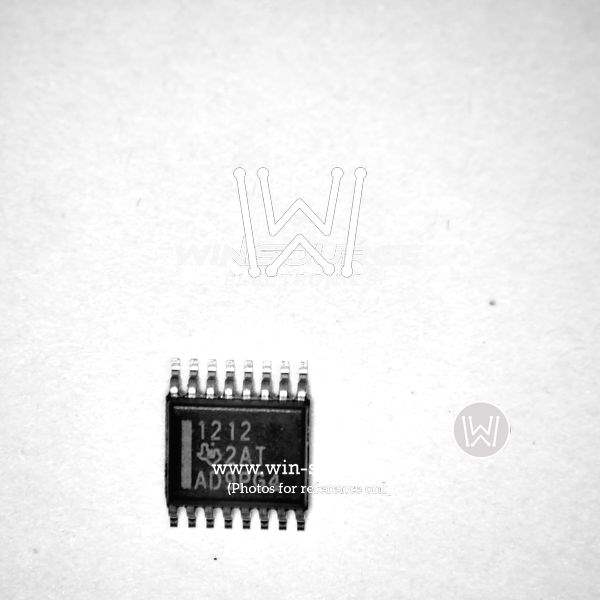

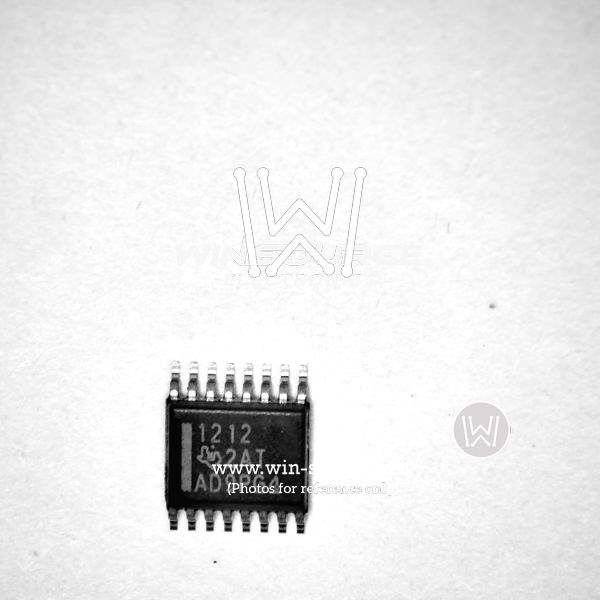

The device comes in a compact 16-pin SSOP (DBQ) package that is conducive to space-constrained applications. It is also specified over the extended industrial temperature range of -40°C to 125°C, ensuring reliable performance under varying environmental conditions. The ISO1212DBQR is designed and manufactured to meet the high-quality standards expected from Texas Instruments, with rigorous testing to ensure long-term reliability and performance.
