Product Overview: AD8030ARJ-EBZ - Analog Devices Inc.

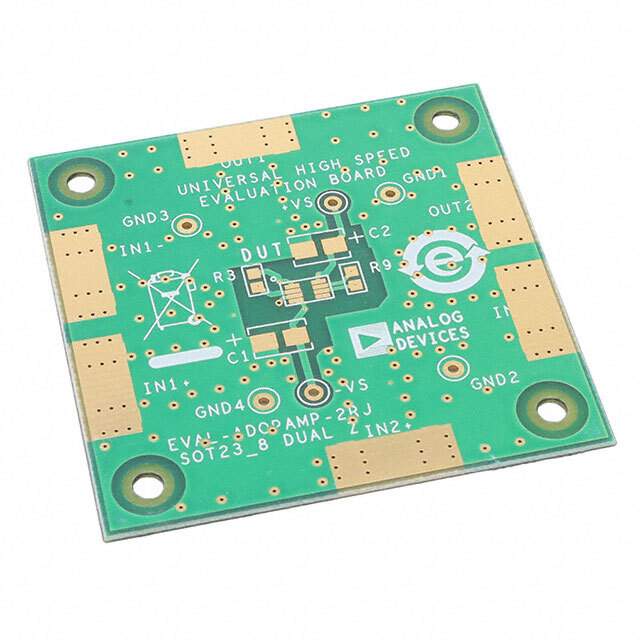

The AD8030ARJ-EBZ from Analog Devices Inc. is a high-performance, single-supply, rail-to-rail output operational amplifier that offers a blend of speed, precision, and low power consumption. This evaluation board is specifically designed for the AD8030 operational amplifier in a SOT-23 package, providing an easy platform for testing and development.

Key Features:

• High Speed: The AD8030ARJ-EBZ boasts a high slew rate and bandwidth, which are ideal for fast signal processing applications.
• Low Power Consumption: With its low power design, it is suitable for battery-powered devices and energy-sensitive applications.
• Rail-to-Rail Output: The op-amp provides a rail-to-rail output swing, which maximizes the dynamic range when operating from low supply voltages.
• Single-Supply Operation: Designed to operate from a single power supply, it simplifies power management in systems where dual supplies are impractical.
• Flexible Supply Voltage Range: The AD8030ARJ-EBZ can operate across a wide range of supply voltages, from 2.7V to 5.5V, accommodating various application requirements.
• Compact Form Factor: The SOT-23 package is small and space-efficient, making it suitable for compact electronic designs.

Applications:

The AD8030ARJ-EBZ is versatile and can be used in a variety of applications, such as:

• Portable and battery-powered instruments
• Data acquisition systems
• Medical devices
• Audio and video signal processing
• Communications systems
• Analog filters
• Driving ADCs

Technical Specifications:

The operational amplifier on this evaluation board has impressive technical specifications that ensure reliable and high-quality performance in a multitude of applications:

• Supply Voltage: 2.7V to 5.5V
• Operating Temperature Range: -40°C to +125°C
• Package Type: SOT-23
• Number of Channels: 1
• Bandwidth: 80 MHz
• Slew Rate: 80 V/µs

For engineers and designers looking for an op-amp that delivers a balance of speed, precision, and low power, the AD8030ARJ-EBZ from Analog Devices Inc. is an excellent choice. Its ease of use and robust feature set make it an invaluable component in a wide array of electronic systems.
