Product Overview: Texas Instruments INA260AIPW

The INA260AIPW is a precision integrated current and power monitor from Texas Instruments, designed to provide high-accuracy measurements in a variety of applications. This device is part of TI's extensive portfolio of power management solutions and is engineered to simplify the process of monitoring power consumption in real-time.

Key Features

• Integrated Current Sensing: The INA260AIPW integrates a precision current-sensing resistor, allowing for direct measurement of the current passing through the device, with a typical accuracy of 1%.
• High-Side Measurement: Capable of high-side measurement, this monitor can measure both shunt voltage and bus voltage, which enables the monitoring of the power supply without interrupting the ground path.
• Wide Voltage Range: It supports a wide common-mode voltage range from 0 to 36 volts, making it suitable for a broad array of systems, including industrial, automotive, and telecommunication applications.
• Digital Output: The INA260AIPW features an I2C-compatible interface, providing digital output for both current and voltage readings, which can be used for real-time monitoring by a microcontroller or processor.
• Configurable Averaging Options: It offers multiple averaging modes and conversion times, allowing the user to optimize the performance for various conditions and requirements.

Applications

The INA260AIPW is versatile and can be used in various applications, including:

• Server and telecom power supplies
• Battery chargers and management systems
• Power monitoring of consumer electronics
• Industrial and automotive systems

Package and Reliability

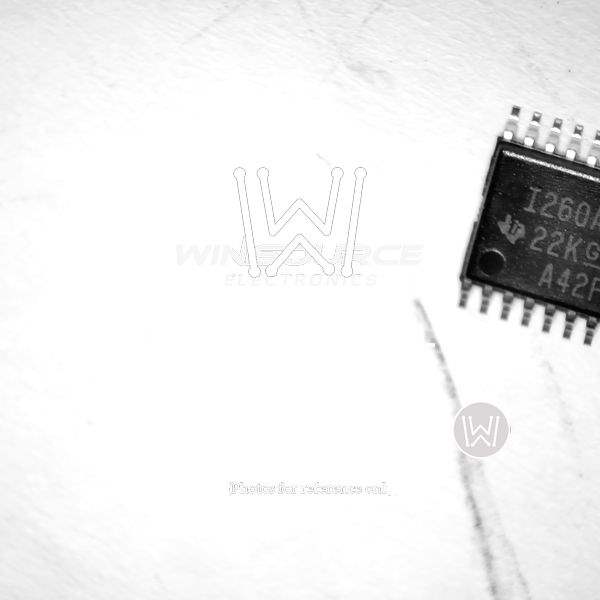

Encased in a 16-pin TSSOP package, the INA260AIPW is designed for easy integration into existing designs. Texas Instruments ensures reliability and performance, with devices tested across a wide temperature range from -40°C to +125°C, catering to the demands of different operating environments.

Overall, the INA260AIPW from Texas Instruments is a robust and precise solution for current and power monitoring, providing engineers with critical data to optimize power consumption and ensure the reliability of their systems.
