The INA236AIDDFR is a state-of-the-art precision power monitor integrated circuit designed and manufactured by Texas Instruments. This high-accuracy device is engineered for real-time monitoring of power supply current and voltage, making it an ideal solution for applications that require precise power management and measurement.

Key Features

• High Accuracy: The INA236AIDDFR offers exceptional accuracy with a maximum offset voltage of only ±15 µV and a gain error of just ±0.1%.
• Wide Common-Mode Range: This device operates over a common-mode voltage range from 0 to 36V, which is suitable for a variety of industrial and consumer applications.
• High Bandwidth: With a bandwidth of up to 400 kHz, the INA236AIDDFR is capable of tracking fast transient currents, providing real-time insights into power consumption.
• Configurable Averaging: It features an internal digital filter with configurable averaging, allowing for tailored performance in noisy environments.
• I2C-Compatible Interface: The device includes an I2C-compatible interface that supports standard, fast, and high-speed modes, enabling easy integration with microcontrollers and digital systems.
• Multiple Gain Options: Available in several gain options to accommodate different current sensing ranges and application requirements.

Applications

The INA236AIDDFR is versatile and can be used in a wide array of applications, including:

• Telecommunications equipment
• Computing systems
• Battery management systems
• Power management modules
• Industrial automation and control systems

Package and Reliability

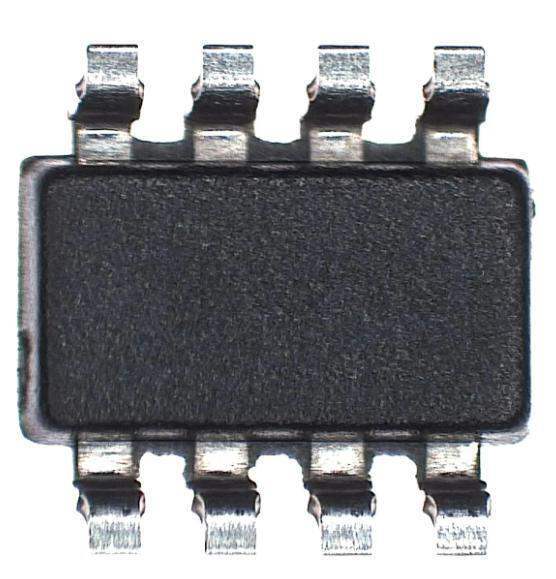

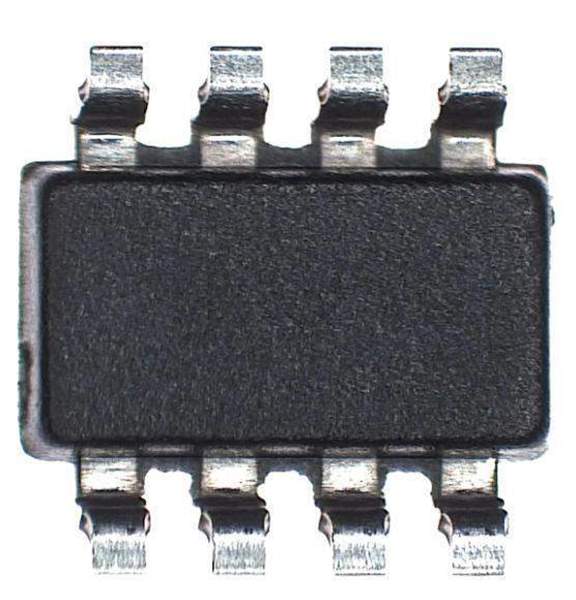

The INA236AIDDFR comes in a compact, surface-mountable DFN package that is RoHS compliant and designed for automated assembly processes. Texas Instruments ensures high reliability and performance consistency, making the INA236AIDDFR a trusted choice for precision power monitoring solutions.
