Introducing the INA216A1YFFT from Texas Instruments

The INA216A1YFFT is a high-precision, bidirectional current sense amplifier from Texas Instruments, designed to offer industry-leading performance for power management and control in a diverse array of applications. This current shunt monitor is highly appreciated for its accuracy, low offset, and the ability to measure low differential voltage signals in the presence of common-mode voltages.

At the heart of the INA216A1YFFT is its ability to provide a precise, linear voltage output that is proportional to the current flowing across a shunt resistor. This feature makes it an ideal choice for applications that require accurate current monitoring, such as battery chargers, power supplies, and energy metering systems.

Key Features:

• High Accuracy: The INA216A1YFFT offers an impressive gain error of just ±0.1%, ensuring highly accurate current measurements for critical applications.
• Low Offset: With an offset voltage as low as ±10 µV, this device can accurately detect very small changes in shunt voltage, making it suitable for monitoring low-level currents.
• Wide Common-Mode Range: The device operates over a common-mode voltage range from -0.2 V to +26 V, accommodating a wide range of operating conditions.
• Quiescent Current: The low quiescent current of 100 µA (typical) makes it an energy-efficient choice for battery-powered applications.

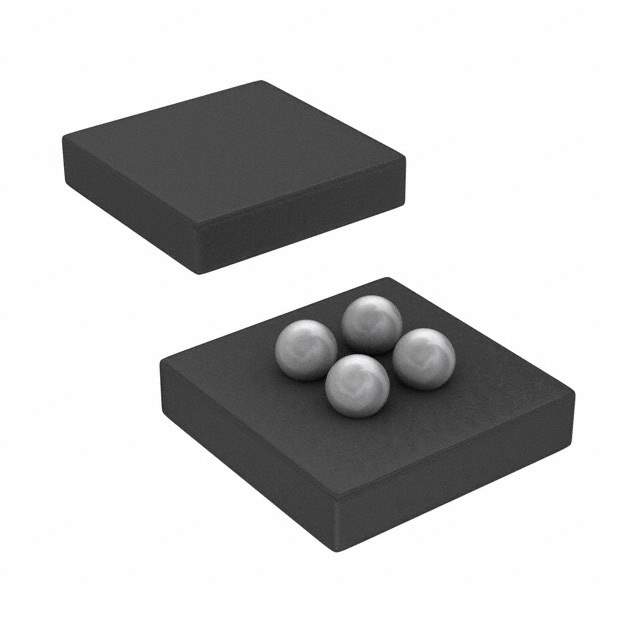

• Small Footprint: Housed in a compact, 4-bump, die-size ball grid array (DSBGA) package, the INA216A1YFFT requires minimal space on the circuit board, which is crucial for space-constrained applications.

Applications:

The INA216A1YFFT is versatile enough to be used in various applications, including:

• Power management in servers and telecom equipment
• Battery monitoring systems in portable devices
• Overcurrent protection circuits
• Automotive systems such as motor control and battery management
• Industrial and consumer electronics requiring precise current monitoring

In summary, the INA216A1YFFT from Texas Instruments is a top-tier current sense amplifier that offers a blend of accuracy, efficiency, and compactness, making it an excellent choice for designers looking to enhance their power management systems. Its robust feature set ensures reliable performance in a wide range of applications, making it a go-to component for current sensing solutions.
