Product Overview: INA215CQDCKRQ1 from Texas Instruments

The INA215CQDCKRQ1 is a precision current-sense amplifier from Texas Instruments, designed specifically for the demanding automotive industry. This high-quality component is part of TI's "Q1" series of automotive-grade products, which means it's built to meet the rigorous standards of reliability and performance required in automotive applications.

Key Features

• High Accuracy: The INA215CQDCKRQ1 boasts an impressive accuracy that ensures precise current measurement, which is vital for monitoring and controlling systems in vehicles.
• Wide Input Common-Mode Range: This device can handle a common-mode voltage range from -0.3V to +26V, making it versatile for various automotive applications, including those with high common-mode voltages.
• Low Quiescent Current: With its low quiescent current, the INA215CQDCKRQ1 is an energy-efficient choice that helps to minimize the power consumption in automotive systems, thereby extending battery life and reducing emissions.
• High Bandwidth: The amplifier provides a bandwidth of 350 kHz, which allows for fast signal processing and response times, a critical feature in dynamic automotive environments.

Applications

The INA215CQDCKRQ1 is ideal for a variety of automotive applications. It is commonly used for:

• Battery management systems
• Motor control monitoring
• Overcurrent protection
• Power management systems

Quality and Reliability

As an automotive-grade product, the INA215CQDCKRQ1 is manufactured to operate reliably in the harsh conditions typical of automotive environments. It is designed to withstand temperature extremes, vibrations, and other challenging conditions without compromising performance.

Package and Availability

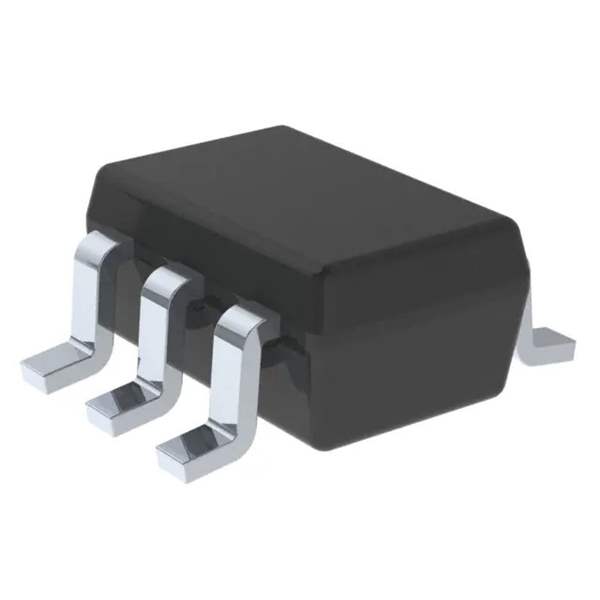

The device comes in a compact, surface-mount SC70 package, which saves valuable space on the printed circuit board. This small form factor is crucial for modern vehicles where space is at a premium. It is also RoHS compliant and lead-free, reflecting Texas Instruments' commitment to environmental sustainability.

In summary, the INA215CQDCKRQ1 from Texas Instruments is a robust, accurate, and efficient solution for current-sense applications in the automotive industry, offering engineers a reliable component that supports the development of safer and more efficient vehicles.
