Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Texas Instruments
Series F28002x C2000™
Package Tray
Core Processor C28x
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, I2C, LINbus, SCI, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 26
Program Memory Size 128KB (64K x 16)
Program Memory Type FLASH
RAM Size 12K x 16
Supply Voltage - Operating 2.81V ~ 3.63V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)

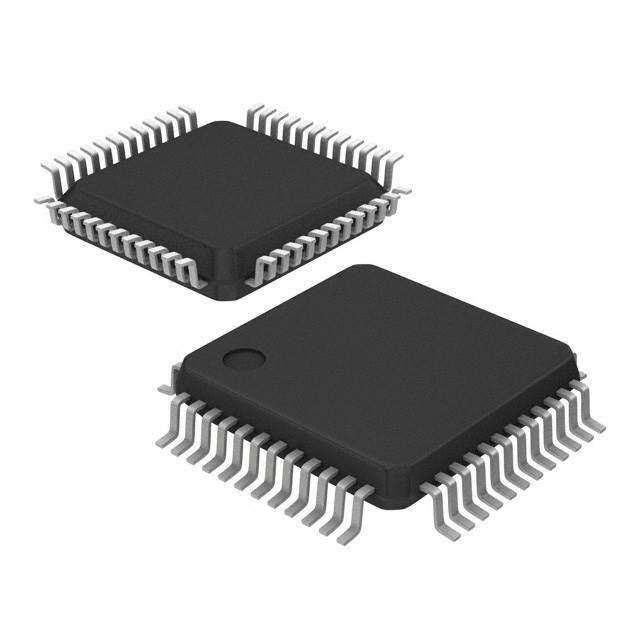

Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number F280025
MSL Level 3 (168 Hours)
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 296-F280025CPMS
Standard Package 160
Win Source Part Number 982499-F280025CPMS
Ultra Librarian 3D Model Ultra Librarian F280025CPMS CAD Model

Description

The F280025CPMS is a highly integrated, high-performance microcontroller unit (MCU) from Texas Instruments (TI), designed specifically for industrial and automotive applications. This advanced MCU is part of TI's C2000™ Piccolo™ family and boasts an impressive array of features tailored for control-oriented tasks.

Key Features:

  • Processing Core: At the heart of the F280025CPMS lies a 32-bit C28x CPU, which is a floating-point processor designed to handle the demands of numeric-intensive processing tasks. This core operates at a frequency of up to 100 MHz, providing robust performance for real-time applications.
  • Memory: The device comes with 128KB of integrated flash memory, optimized for high-speed and reliable operation, and 20KB of SRAM, which is essential for temporary data storage during complex computations.
  • Advanced Peripherals: This MCU features a rich set of peripherals, including a 12-bit analog-to-digital converter (ADC) that enables precise measurement of analog signals, PWM outputs for motor control, and a variety of communication interfaces such as I2C, SPI, and UART for versatile connectivity options.
  • Enhanced Control: With its specialized control peripherals like the ePWM and HRPWM modules, the F280025CPMS is ideal for applications requiring sophisticated timing and control, such as power converters, inverters, and other power electronics.
  • Robust Design: The MCU has been engineered to withstand harsh environments, featuring a temperature range of -40°C to 125°C and a robust design that ensures reliable operation in automotive and industrial settings.
  • Development Support: TI provides comprehensive software and hardware development tools for the F280025CPMS, including the Code Composer Studio™ integrated development environment (IDE) and the controlSUITE™ software suite, which offers libraries and examples to accelerate development.

Applications:

The versatility of the F280025CPMS makes it suitable for a wide range of applications, particularly where precise control and efficient processing are required. These applications include electric vehicle (EV) powertrain systems, renewable energy inverters, industrial motor drives, power supplies, and advanced sensing systems.

With its combination of performance, integrated features, and robust design, the F280025CPMS from Texas Instruments represents a compelling solution for designers looking to create sophisticated control systems in automotive and industrial environments.
