Introducing the ESD122DMYR from Texas Instruments

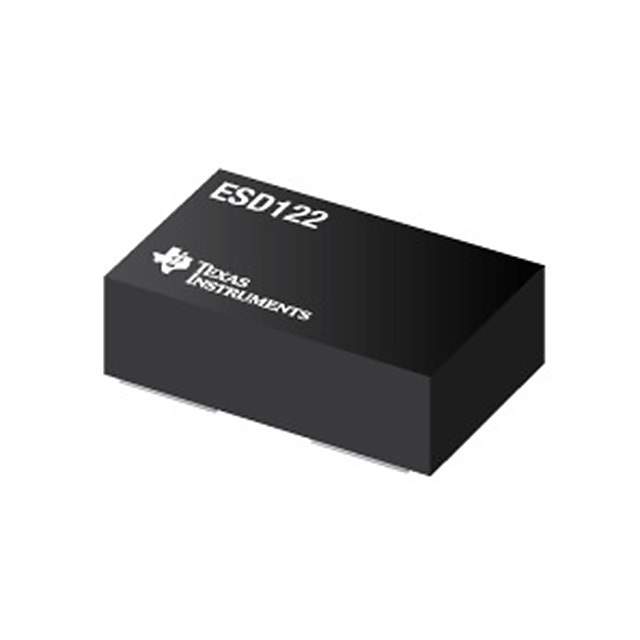

The ESD122DMYR is a state-of-the-art electrostatic discharge (ESD) protection device designed by Texas Instruments to safeguard high-speed data lines from potentially damaging voltage spikes. This compact, robust solution is ideal for modern electronics that require reliable protection without compromising signal integrity.

Key Features

• Low Capacitance: The ESD122DMYR boasts ultra-low capacitance, typically around 0.35 pF, ensuring that high-speed signals such as USB 2.0, HDMI, and Thunderbolt are transmitted without significant distortion.
• High ESD Protection: This device is capable of withstanding ESD strikes up to ±12kV (contact) and ±15kV (air-gap) discharge as per the IEC 61000-4-2 standard, providing robust protection for sensitive circuitry.
• Small Package Size: The compact DMY (X2SON) package measures a mere 0.6mm x 1.0mm, making it perfect for space-constrained applications such as smartphones, tablets, and ultra-thin laptops.
• Low Leakage Current: With a typical leakage current of only 10 nA, the ESD122DMYR ensures minimal power loss, making it suitable for battery-powered devices where power efficiency is critical.
• Fast Response Time: The device reacts almost instantaneously to ESD events, providing prompt protection when it's most needed.

Applications

The ESD122DMYR is versatile and can be used across a wide range of applications. It's particularly well-suited for:

• High-speed data line protection
• USB 2.0 power and data line protection
• Protection for HDMI 1.4 and 2.0 interfaces
• Mobile handsets, tablets, and portable electronics
• Notebooks, desktops, and servers

Reliability and Quality

As with all Texas Instruments products, the ESD122DMYR is manufactured to the highest quality standards, ensuring reliability and performance. It is designed to seamlessly integrate into your existing design architecture, providing peace of mind with its exceptional protection capabilities.

Conclusion

For designers looking for a reliable, high-performance ESD protection solution, the ESD122DMYR from Texas Instruments offers an excellent blend of features and compactness. Its low capacitance, high ESD protection level, and small form factor make it an ideal choice for protecting the next generation of high-speed interfaces and sensitive electronic components.
