Product Overview: EKS-LM3S6965

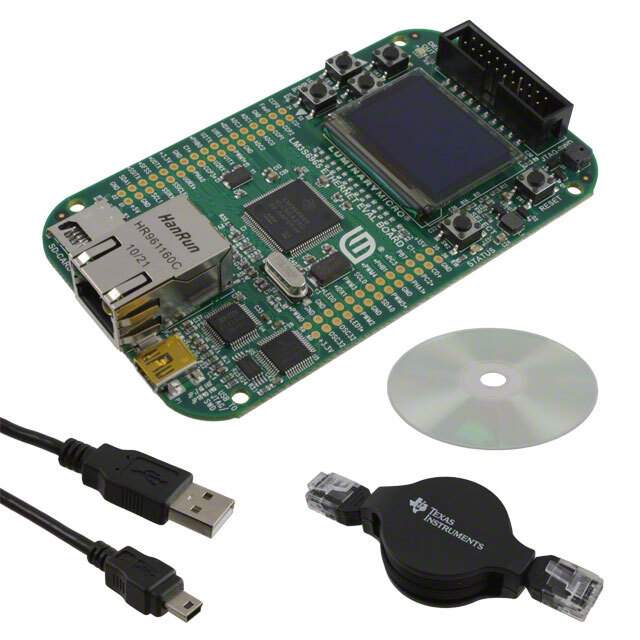

The EKS-LM3S6965 is a robust evaluation kit designed by Texas Instruments to provide developers with a comprehensive platform to explore the capabilities and features of the LM3S6965 microcontroller, which is part of the ARM Cortex-M3 based Stellaris family. This product is tailored for those who are looking to delve into the world of embedded systems and Internet of Things (IoT) applications, offering a rich set of peripherals and a user-friendly environment for software development and experimentation.

Key Features

• High-Performance ARM Cortex-M3 Processor: At the heart of the EKS-LM3S6965 lies a 32-bit ARM Cortex-M3 CPU, which runs at up to 50 MHz, providing users with efficient processing capabilities suitable for a wide range of applications.
• Integrated Peripherals: The evaluation kit includes an array of built-in peripherals such as Ethernet MAC+PHY, USB OTG/Host/Device, CAN, UARTs, I2C, SPI, and QEI, which allow for a variety of communication and interface options.
• OLED Display: A 96x16 pixel OLED display is included on the board, enabling immediate visual feedback and a convenient interface for user interaction and data presentation.
• Extensive Memory: The microcontroller is equipped with 256KB Flash memory and 64KB single-cycle SRAM, providing ample space for code storage and efficient runtime data handling.
• Expandability: The EKS-LM3S6965 features a breadboard-friendly breakout for all I/Os, alongside a BoosterPack XL Interface, which allows for easy expansion with a wide range of additional modules and custom circuits.

Development Support

The evaluation kit is supported by Texas Instruments' comprehensive software development ecosystem, which includes the StellarisWare software package, featuring libraries, code examples, and documentation to accelerate the development process. Additionally, the kit is compatible with many industry-standard development tools and IDEs, ensuring a flexible and powerful environment for both novice and experienced developers.

Applications

With its versatile hardware features and extensive development support, the EKS-LM3S6965 is an excellent tool for creating and testing applications in areas such as industrial control, embedded networking, home automation, and many other fields that require high reliability and performance.
